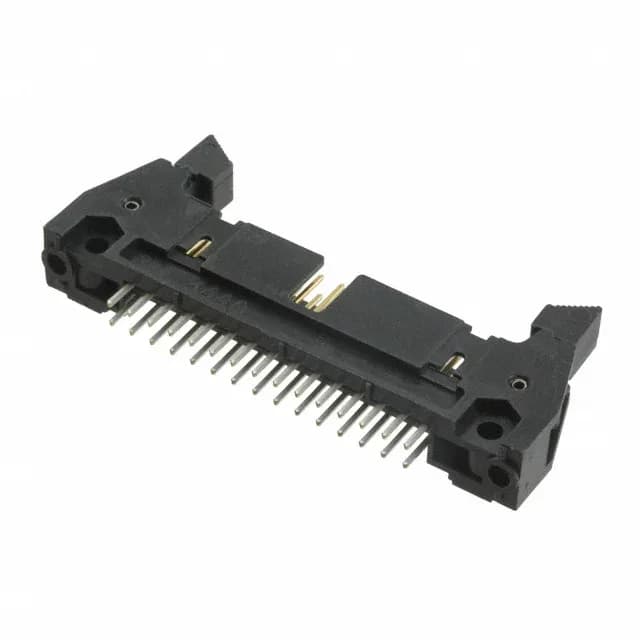

3M D3440-6202-AR
MPND3440-6202-AR
Active
CONN HEADER VERT 30POS 2.54MM
$3.99Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesD3000
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D3000 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1.75A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.680\" (17.27mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.112\" (2.84mm) |
| Overall contact length | 0.652\" (16.56mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
