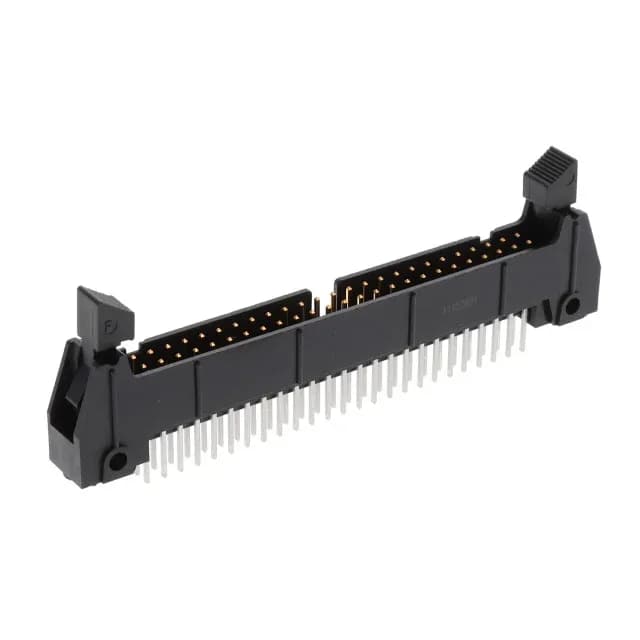

3M N3433-6203RB
MPNN3433-6203RB
Active
CONN HEADER VERT 50POS 2.54MM
$8.25Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series3000
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3000 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1.75A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.680\" (17.27mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.695\" (17.65mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
