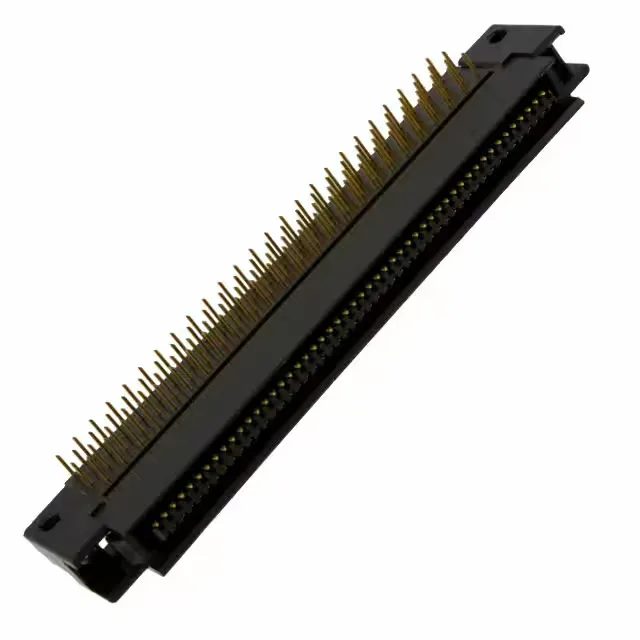

3M P50E-100P1-SR1-EA
MPNP50E-100P1-SR1-EA
Active
CONN HEADER R/A 100P 1.27MM
$13.65Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPak 50, P50E
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pak 50, P50E |
| Type | Center Strip Contact |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Current rating | 0.5A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 100 |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
