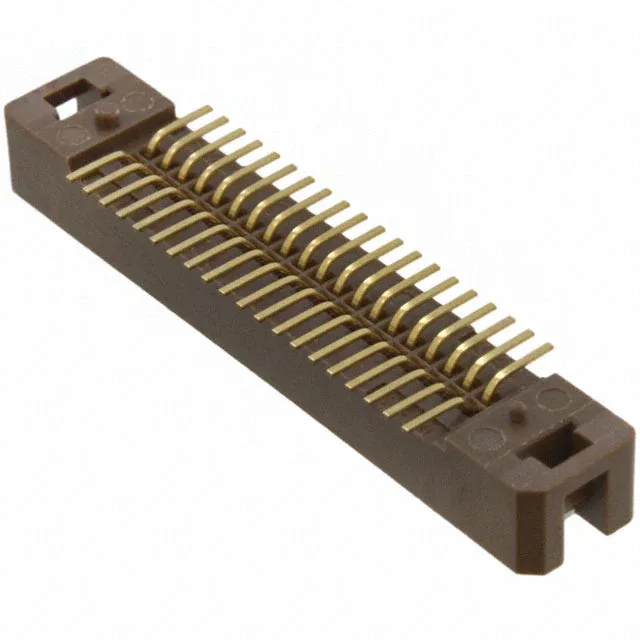

CONN HEADER VERT 40POS 1.27MM
$7.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Pak 50, P50LE |
| Gender | Center Strip Contact |
| Mounting type | Through Hole |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Current rating | 0.5A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Brown |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 40 |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
Sourcing this connector
3M P50LE-040P1-R1-DA is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against 3M and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
