3M P50LE-068P1-SML-DA
MPNP50LE-068P1-SML-DA
Active

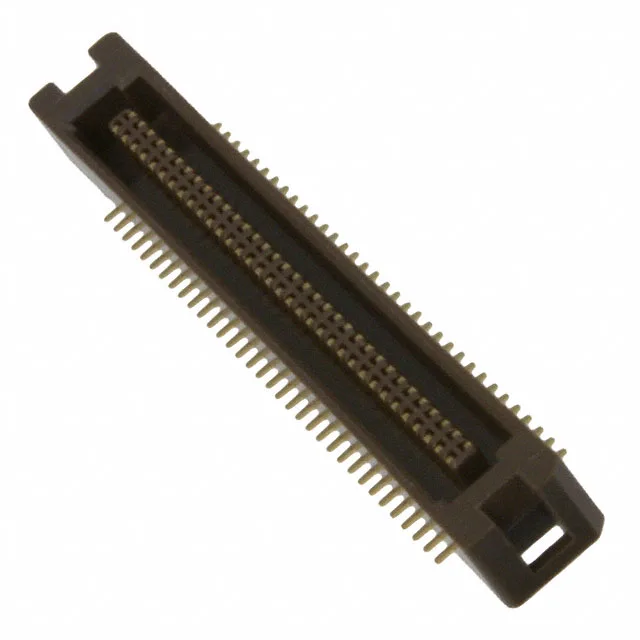

CONN HEADER SMD 68POS 1.27MM
$11.27Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPak 50, P50LE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pak 50, P50LE |
| Type | Center Strip Contact |
| Mounting | Surface Mount |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Current rating | 0.5A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Brown |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 68 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
