CP2-HB125-E1-KR
3M
125MetPak™ CP2Bulk
Ref. price$8.42
Lead time on requestGet quote
3M CP2H Series
2 variants · 3M
About the 3M CP2H Series
The 3M CP2H Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, Male Pins, connector usage of CompactPCI Hot Swap and contact finish of Gold. Variants differ by connector style, number of rows and positions, so you can match the exact connector style your application requires using the selection guide below. All listed 3M CP2H Series part numbers are active and orderable.
Select a variant by
- Connector style
- B 22 · B 25
- Number of rows
- 5 · 5 + 2
- Positions
- 125 · 154 (110 + 44 Ground)
Shared specifications
- Connector type
- Header, Male Pins
- Connector usage
- CompactPCI Hot Swap
- Contact finish
- Gold
- Contact finish thickness
- 30.0µin (0.76µm)
- Mounting
- Through Hole
- Number of positions loaded
- All
- Operating temperature
- -40°C ~ 85°C
- Package
- Bulk
- Pitch
- 0.079\" (2.00mm)
- Termination
- Press-Fit
Variant comparison

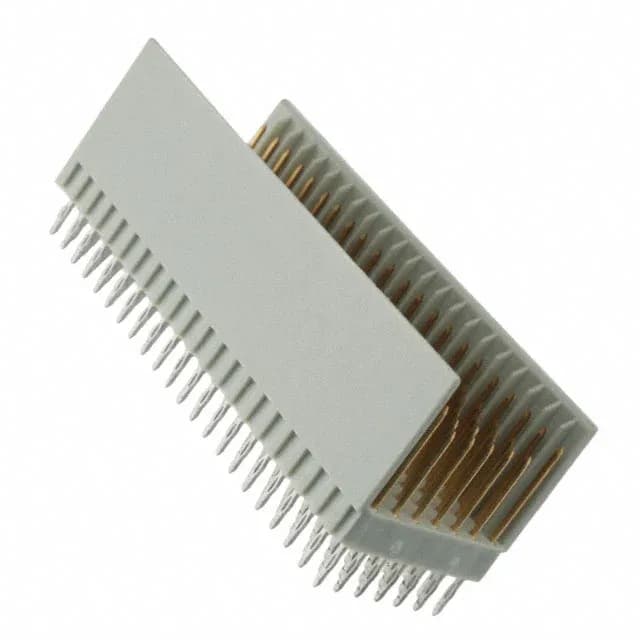

| Parameter | CP2-HB125-E1-KR | CP2-HB110-GA1-KR |
|---|---|---|
| Connector style | B 25 | B 22 |
| Number of rows | 5 | 5 + 2 |
| Positions | 125 | 154 (110 + 44 Ground) |
Request a quote on any 3M CP2H Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
