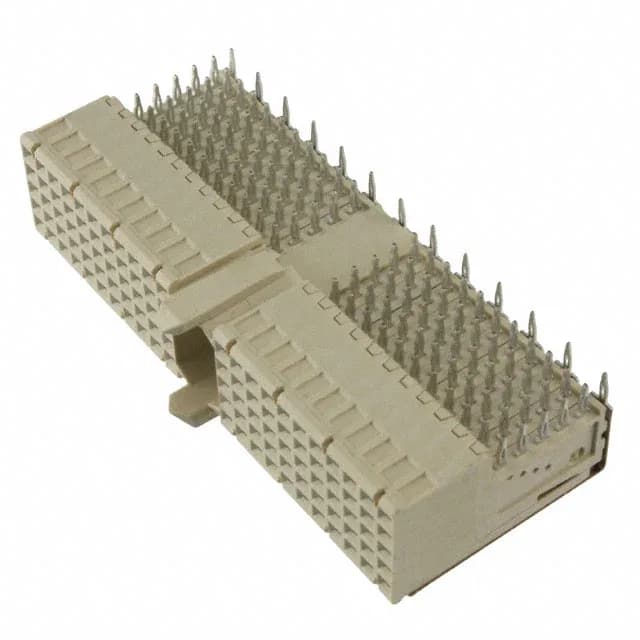

CP2-SA110-G1-FJ
3M
MetPak™ CP2BulkThrough Hole, Right Angle
Ref. price$8.28
Lead time on requestGet quote
3M CP2S Series
2 variants · 3M
About the 3M CP2S Series
The 3M CP2S Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector style of A 22, connector type of Receptacle, Female Sockets and connector usage of CompactPCI. Variants differ by contact finish thickness, so you can match the exact contact finish thickness your application requires using the selection guide below. All listed 3M CP2S Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness
- 10.0µin (0.25µm) · 30.0µin (0.76µm)
Shared specifications
- Connector style
- A 22
- Connector type
- Receptacle, Female Sockets
- Connector usage
- CompactPCI
- Contact finish
- Gold
- Features
- Upper Shield
- Mounting
- Through Hole, Right Angle
- Number of positions loaded
- All
- Number of rows
- 5
- Operating temperature
- -55°C ~ 125°C
- Package
- Bulk
- Pitch
- 0.079\" (2.00mm)
- Positions
- 110
Variant comparison
| Parameter | CP2-SA110-G1-FJ | CP2-SA110-G1-KR |
|---|---|---|
| Contact finish thickness | 10.0µin (0.25µm) | 30.0µin (0.76µm) |
Request a quote on any 3M CP2S Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
