Abracon LLC ARJ12A-MASD-A-B-EMU2
MPNARJ12A-MASD-A-B-EMU2
Active

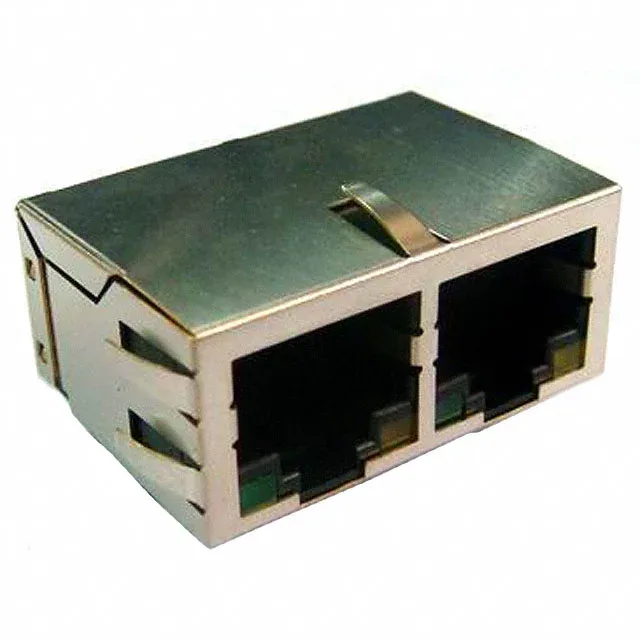

CONN JACK 2PORT 100 BASE-TX PCB
$10.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesARJ12A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ARJ12A |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green - Yellow |
| Height above board | 0.535\" (13.59mm) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-TX, AutoMDIX |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 2 |
| Contact finish thickness | 6.00µin (0.152µm) |
| Number of cores per jack | 4 |
