2PH2-04-UA
Adam Tech
4-40°C ~ 105°C2PH2
Ref. price$0.16
Lead time on requestGet quote ›
Adam Tech 2PH2 Series
18 variants · Adam Tech
About the Adam Tech 2PH2 Series
The Adam Tech 2PH2 Series series groups 18 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, contact finish - mating of Gold and contact finish - post of Gold. Variants differ by insulation height, mounting type and operating temperature, so you can match the exact insulation height your application requires using the selection guide below. All listed Adam Tech 2PH2 Series part numbers are active and orderable.
Select a variant by
- Insulation height
- 0.079\" (2.00mm) · 0.157\" (4.00mm)
- Mounting type

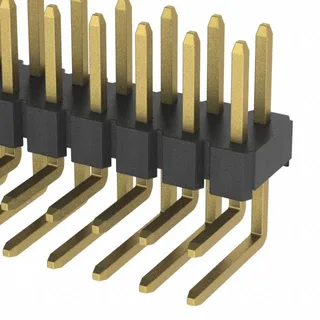

- Through Hole · Through Hole, Right Angle
- Operating temperature
- -55°C ~ 105°C · -40°C ~ 105°C
- Positions
- 4 · 6 · 8 · 10 · 12 · 14 · 16 · 18 · 20
Shared specifications
- Connector type
- Header
- Contact finish - mating
- Gold
- Contact finish - post
- Gold
- Contact finish thickness - mating
- Flash
- Contact finish thickness - post
- Flash
- Contact length - mating
- 0.154\" (3.91mm)
- Contact length - post
- 0.110\" (2.79mm)
- Contact material
- Brass
- Contact shape
- Square
- Current rating
- 1A
- Fastening type
- Push-Pull
- Gender
- Male Pin
Variant comparison
| Parameter | 2PH2-04-UA | 2PH2-06-UA | 2PH2-08-UA | 2PH2-10-UA | 2PH2-12-UA | 2PH2-14-UA |
|---|---|---|---|---|---|---|
| Insulation height | 0.079\" (2.00mm) | 0.079\" (2.00mm) | 0.079\" (2.00mm) | 0.079\" (2.00mm) | 0.079\" (2.00mm) | 0.079\" (2.00mm) |
| Mounting type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Positions | 4 | 6 | 8 | 10 | 12 | 14 |
Request a quote on any Adam Tech 2PH2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Adam Tech 2PH2 Series variants differ?
- Adam Tech 2PH2 Series part numbers differ by insulation height, mounting type, operating temperature and positions. Use the selection guide above to pick by insulation height.
- How many Adam Tech 2PH2 Series part numbers are listed?
- 18 Adam Tech 2PH2 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Adam Tech 2PH2 Series?
- Request a quote (RFQ) for any Adam Tech 2PH2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
