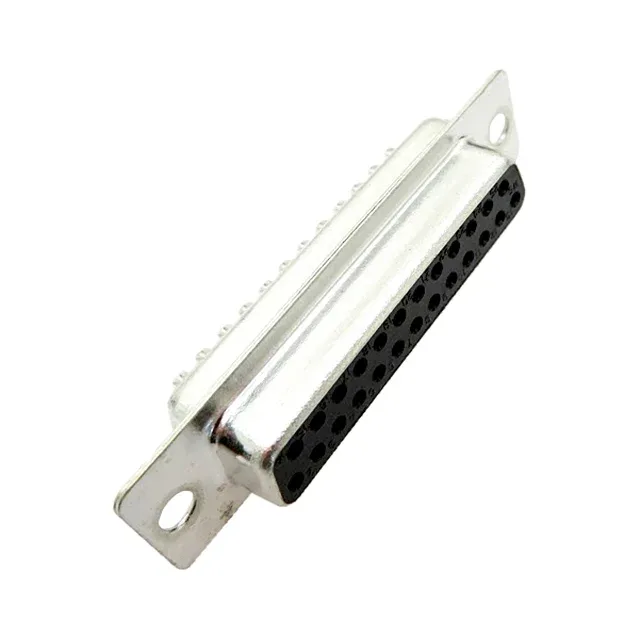

DB25-SA-M1
Adam Tech
DSA-65°C~125°CSolder
Ref. price$2.2400
Lead time on requestGet quote ›
Adam Tech DB25S Series
14 variants · Adam Tech
About the Adam Tech DB25S Series
The Adam Tech DB25S Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Receptacle, Female Sockets and contact finish of Gold. Variants differ by backset spacing, contact finish thickness and contact form, so you can match the exact backset spacing your application requires using the selection guide below. All listed Adam Tech DB25S Series part numbers are active and orderable.
Select a variant by
- Backset spacing
- - · 0.197\" (5.00mm) · 0.319\" (8.10mm)
- Contact finish thickness
- - · Flash
- Contact form
- - · Machined · Stamped
- Contact material
- Copper Alloy · Phosphor Bronze
- Current rating
- 1A · 3A · 5A
- Dielectric material
- Polybutylene Terephthalate (PBT), Glass Filled · Thermoplastic, Glass Filled
- Features
- - · Board Lock
- Flange feature
- Cable Side (4-40) · Housing/Shell (4-40) · Housing/Shell (Unthreaded) · Mating Side, Female Screwlock (4-40)
Shared specifications
- Color
- Black
- Connector type
- Receptacle, Female Sockets
- Contact finish
- Gold
- Gender
- -
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Positions
- 25
- Rows
- 2
- Shell size, connector layout
- 3 (DB, B)
Variant comparison
| Parameter | DB25-SA-M1 | DB25-SD | DB25-SD-MC | DB25-SD-SL | DB25-SF-M1 | DB25-SF-M2 |
|---|---|---|---|---|---|---|
| Backset spacing | - | - | - | - | - | - |
| Contact finish thickness | Flash | Flash | - | Flash | Flash | Flash |
| Contact form | - | Stamped | Machined | Stamped | - | - |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Phosphor Bronze | Phosphor Bronze |
| Current rating | 1A | 3A | 5A | 3A | 5A | 5A |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - | - | - | - | - | - |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (4-40) |
Request a quote on any Adam Tech DB25S Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Adam Tech DB25S Series variants differ?
- Adam Tech DB25S Series part numbers differ by backset spacing, contact finish thickness, contact form and contact material. Use the selection guide above to pick by backset spacing.
- How many Adam Tech DB25S Series part numbers are listed?
- 14 Adam Tech DB25S Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Adam Tech DB25S Series?
- Request a quote (RFQ) for any Adam Tech DB25S Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
