Adam Tech PLCC Series
8 variants · Adam Tech
About the Adam Tech PLCC Series
The Adam Tech PLCC Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - mating of Tin, contact finish - post of Tin and contact finish thickness - mating of 80.0µin (2.03µm). Variants differ by housing material, mounting type and number of positions or pins, so you can match the exact housing material your application requires using the selection guide below. All listed Adam Tech PLCC Series part numbers are active and orderable.
Select a variant by
- Housing material
- Polybutylene Terephthalate (PBT), Glass Filled · Thermoplastic
- Mounting type
- Surface Mount · Through Hole
- Number of positions or pins
- 20 (4 x 5) · 28 (4 x 7) · 32 (2 x 7, 2 x 9) · 44 (4 x 11) · 52 (4 x 13) · 68 (4 x 17)
- Pitch - post
- 0.050\" (1.27mm) · 0.100\" (2.54mm)
- Termination post length
- 0.008\" (2.03mm) · 0.126\" (3.20mm)
Shared specifications
- Contact finish - mating
- Tin
- Contact finish - post
- Tin
- Contact finish thickness - mating
- 80.0µin (2.03µm)
- Contact finish thickness - post
- 80.0µin (2.03µm)
- Contact material - mating
- Phosphor Bronze
- Contact material - post
- Phosphor Bronze
- Contact resistance
- 30mOhm
- Current rating
- 1 A
- Features
- Closed Frame
- Material flammability rating
- UL94 V-0
- Operating temperature
- -55°C ~ 105°C
- Package
- Tube
Variant comparison
| Parameter | PLCC-20-AT | PLCC-28-AT | PLCC-32-AT-SMT | PLCC-44-AT | PLCC-44-AT-SMT | PLCC-52-AT |
|---|---|---|---|---|---|---|
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Thermoplastic | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting type | Through Hole | Through Hole | Surface Mount | Through Hole | Surface Mount | Through Hole |
| Number of positions or pins | 20 (4 x 5) | 28 (4 x 7) | 32 (2 x 7, 2 x 9) | 44 (4 x 11) | 44 (4 x 11) | 52 (4 x 13) |
| Pitch - post | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.050\" (1.27mm) | 0.100\" (2.54mm) | 0.050\" (1.27mm) | 0.100\" (2.54mm) |
| Termination post length | 0.126\" (3.20mm) | 0.126\" (3.20mm) | 0.008\" (2.03mm) | 0.126\" (3.20mm) | 0.008\" (2.03mm) | 0.126\" (3.20mm) |
Request a quote on any Adam Tech PLCC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Adam Tech PLCC Series variants differ?
- Adam Tech PLCC Series part numbers differ by housing material, mounting type, number of positions or pins and pitch - post. Use the selection guide above to pick by housing material.
- How many Adam Tech PLCC Series part numbers are listed?
- 8 Adam Tech PLCC Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Adam Tech PLCC Series?
- Request a quote (RFQ) for any Adam Tech PLCC Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.100\" (2.54mm) · Mounting type: Through Hole · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.126\" (3.20mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 20 (4 x 5)
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.100\" (2.54mm) · Mounting type: Through Hole · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.126\" (3.20mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 28 (4 x 7)
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.050\" (1.27mm) · Mounting type: Surface Mount · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.008\" (2.03mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 32 (2 x 7, 2 x 9)
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.100\" (2.54mm) · Mounting type: Through Hole · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.126\" (3.20mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 44 (4 x 11)

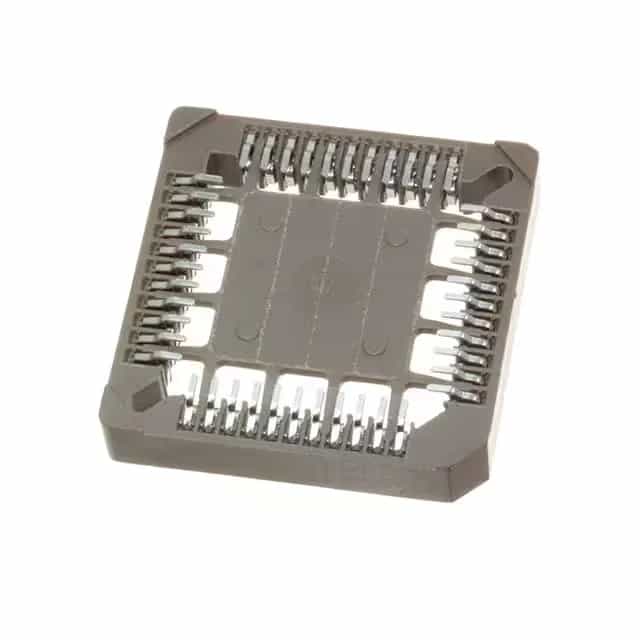

Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.050\" (1.27mm) · Mounting type: Surface Mount · Pitch: 0.050\" (1.27mm) · Housing material: Thermoplastic · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.008\" (2.03mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 44 (4 x 11)
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.100\" (2.54mm) · Mounting type: Through Hole · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.126\" (3.20mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 52 (4 x 13)
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.100\" (2.54mm) · Mounting type: Through Hole · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.126\" (3.20mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 68 (4 x 17)
Type: PLCC · Series: PLCC · Package: Tube · Features: Closed Frame · Termination: Solder · Pitch - post: 0.050\" (1.27mm) · Mounting type: Surface Mount · Pitch: 0.050\" (1.27mm) · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Contact resistance: 30mOhm · Contact finish - post: Tin · Current rating: 1 A · Operating temperature: -55°C ~ 105°C · Contact finish - mating: Tin · Contact material - post: Phosphor Bronze · Termination post length: 0.008\" (2.03mm) · Contact material - mating: Phosphor Bronze · Material flammability rating: UL94 V-0 · Contact finish thickness - post: 80.0µin (2.03µm) · Contact finish thickness - mating: 80.0µin (2.03µm) · Number of positions or pins: 68 (4 x 17)
