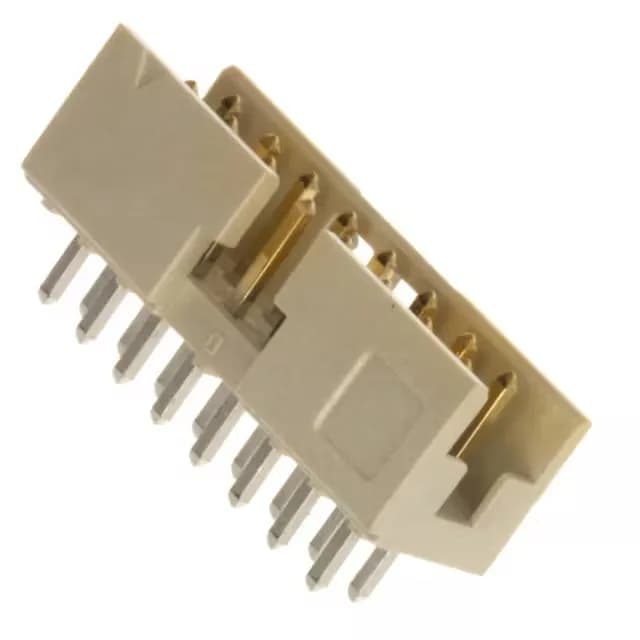

98414-G06-16LF Molex Minitek 2.00mm 16-Position Header, 2A, Dual Row
Molex Minitek® 2.00mm pitch header, 16 positions, 2 rows, 200V AC/DC, 2A per contact, dual-plating (tin posts 78.7µin / gold GXT™ mating 30.0µin), latch holder, shrouded 4-wall, keying slot, through-hole, UL94 V-0, cream thermoplastic housing.
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.232\" (5.90mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Sourcing this connector
Amphenol ICC (FCI) 98414-G06-16LF is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Amphenol ICC (FCI) and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
Frequently asked questions
Who supplies 98414-G06-16LF and how is it quoted?
Sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim applies.
What is the closest pin-compatible alternative to 98414-G06-16LF in this family?
The 98414 base product number spans the Minitek® 2.00mm dual-row header family — different position counts within the same series share the same pitch, row spacing, and board footprint, making lower-position-count variants the direct pin-compatible alternatives for downsizing the BOM line.
What is 98414-G06-16LF's listed style?
Board to Board or Cable — the header accepts a matching receptacle for board-to-board stacking or mates with a cable-side housing for wire-to-board drop points.
What is 98414-G06-16LF's listed series?
Minitek® 2.00mm — the 2.00mm pitch dual-row series from Molex with a standardised footprint across the position-count range.
What compliance documentation does Molex provide for 98414-G06-16LF?
The housing is rated UL94 V-0. Full RoHS/REACH and UL documentation should be requested directly — compliance documentation is confirmed per the official Molex product page rather than inferred from the series rating alone.
