HM2J07PE5110N9LF
Amphenol
11050.079\" (2.00mm)
Ref. price$8.68
Lead time on requestGet quote ›

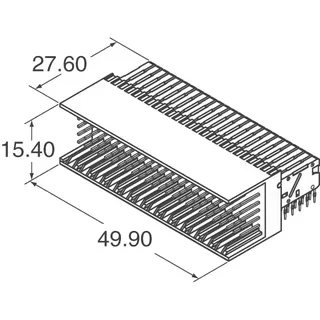

Amphenol HM2J Series
7 variants · Amphenol
About the Amphenol HM2J Series
The Amphenol HM2J Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, Male Pins, contact finish of Gold and contact finish thickness of 30.0µin (0.76µm). Variants differ by positions and rows, so you can match the exact positions your application requires using the selection guide below. All listed Amphenol HM2J Series part numbers are active and orderable.
Select a variant by
- Positions
- 55 · 66 (55 + 11 Ground) · 110 · 114 (95 + 19 Ground) · 125 · 132 (110 + 22 Ground)
- Rows
- 5 · 5 + 1
Shared specifications
- Connector type
- Header, Male Pins
- Contact finish
- Gold
- Contact finish thickness
- 30.0µin (0.76µm)
- Current rating
- 1.5 A
- Mounting type
- Board Edge, Through Hole, Right Angle
- Operating temperature
- -55°C ~ 125°C
- Package
- Tray
- Pitch
- 0.079\" (2.00mm)
- Termination
- Press-Fit
- Voltage rating
- 750Vrms
Variant comparison
| Parameter | HM2J07PE5110N9LF | HM2J07PE5118N9LF | HM2J08PE5110N9LF | HM2J09PE5110N9LF | HM2J09PE5118N9LF | HM2J70PE5118N9LF |
|---|---|---|---|---|---|---|
| Positions | 110 | 132 (110 + 22 Ground) | 125 | 55 | 66 (55 + 11 Ground) | 132 (110 + 22 Ground) |
| Rows | 5 | 5 + 1 | 5 | 5 | 5 + 1 | 5 + 1 |
Request a quote on any Amphenol HM2J Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Amphenol HM2J Series variants differ?
- Amphenol HM2J Series part numbers differ by positions and rows. Use the selection guide above to pick by positions.
- How many Amphenol HM2J Series part numbers are listed?
- 7 Amphenol HM2J Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Amphenol HM2J Series?
- Request a quote (RFQ) for any Amphenol HM2J Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
