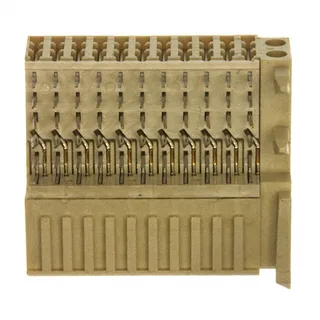

HM2R01PA5100N9LF
Amphenol
110Board Guide5
Ref. price$4.82
Lead time on requestGet quote ›
Amphenol HM2R Series
23 variants · Amphenol
About the Amphenol HM2R Series
The Amphenol HM2R Series series groups 23 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Receptacle, Female Sockets, contact finish of Gold and current rating of 1.5 A. Variants differ by contact finish thickness, positions and features, so you can match the exact contact finish thickness your application requires using the selection guide below. All listed Amphenol HM2R Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness
- 30.0µin (0.76µm) · 39.4µin (1.00µm)
- Positions
- 55 · 110 · 125
- Features
- Board Guide · Board Guide, Lower Shield, Upper Shield · Board Guide, Upper Shield · Upper Shield
Shared specifications
- Connector type
- Receptacle, Female Sockets
- Contact finish
- Gold
- Current rating
- 1.5 A
- Mounting type
- Board Edge, Through Hole, Right Angle
- Operating temperature
- -55°C ~ 125°C
- Package
- Tray
- Pitch
- 0.079\" (2.00mm)
- Rows
- 5
- Termination
- Press-Fit
- Voltage rating
- 750Vrms
Variant comparison
| Parameter | HM2R01PA5100N9LF | HM2R01PA5108N9LF | HM2R01PA510FN9LF | HM2R02PA5100N9LF | HM2R02PA5108N9LF | HM2R03PA5100N9LF |
|---|---|---|---|---|---|---|
| Contact finish thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Positions | 110 | 110 | 110 | 125 | 125 | 55 |
| Features | Board Guide | Board Guide, Upper Shield | Board Guide, Upper Shield | — | Upper Shield | Board Guide |
Request a quote on any Amphenol HM2R Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Amphenol HM2R Series variants differ?
- Amphenol HM2R Series part numbers differ by contact finish thickness, positions and features. Use the selection guide above to pick by contact finish thickness.
- How many Amphenol HM2R Series part numbers are listed?
- 23 Amphenol HM2R Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Amphenol HM2R Series?
- Request a quote (RFQ) for any Amphenol HM2R Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
