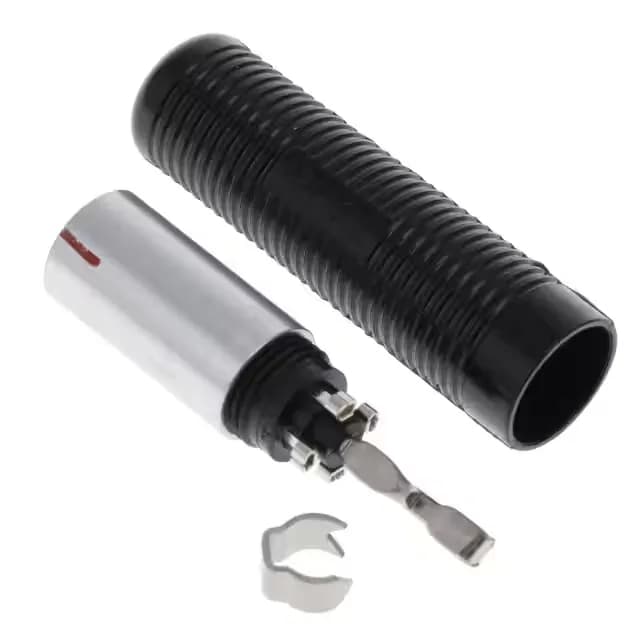

TJ-101
Amphenol
Military, MIL-C-9177BulkFree Hanging (In-Line)
Ref. price$33.28
Lead time on requestGet quote
Amphenol TJ10 Series
2 variants · Amphenol
About the Amphenol TJ10 Series
The Amphenol TJ10 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actual diameter of 0.285\" (7.24mm), cable opening of 0.272\" (6.91mm) and connector type of Phone Jack. Variants differ by body color, mating length (Depth) and number of positions (Contacts), so you can match the exact body color your application requires using the selection guide below. All listed Amphenol TJ10 Series part numbers are active and orderable.
Select a variant by
- Body color
- Black · Red
- Mating length (Depth)
- 0.761\" (19.33mm) · 0.901\" (22.89mm)
- Number of positions (Contacts)
- 4 Conductors, 4 Contacts · 5 Conductors, 5 Contacts
- Signal lines
- 5 Conductor (TRRRS) · Stereo (4 Conductor, TRRS)
Shared specifications
- Actual diameter
- 0.285\" (7.24mm)
- Cable opening
- 0.272\" (6.91mm)
- Connector type
- Phone Jack
- Contact material
- Beryllium Copper
- Contact material - plating
- Nickel
- Features
- Cover
- Gender
- Female
- Housing material
- Plastic
- Includes
- 2 pcs - 1 Connector, 1 Handle
- Internal switch
- Does Not Contain Switch
- Mounting
- Free Hanging (In-Line)
- Package
- Bulk
Variant comparison
| Parameter | TJ-101 | TJ-105 |
|---|---|---|
| Body color | Black | Red |
| Mating length (Depth) | 0.761\" (19.33mm) | 0.901\" (22.89mm) |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts | 5 Conductors, 5 Contacts |
| Signal lines | Stereo (4 Conductor, TRRS) | 5 Conductor (TRRRS) |
Request a quote on any Amphenol TJ10 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
