How do the Assmann WSW Components ACCS Series variants differ?

Assmann WSW Components ACCS Series part numbers differ by housing material, mounting type, number of positions or pins and pitch - post. Use the selection guide above to pick by housing material.

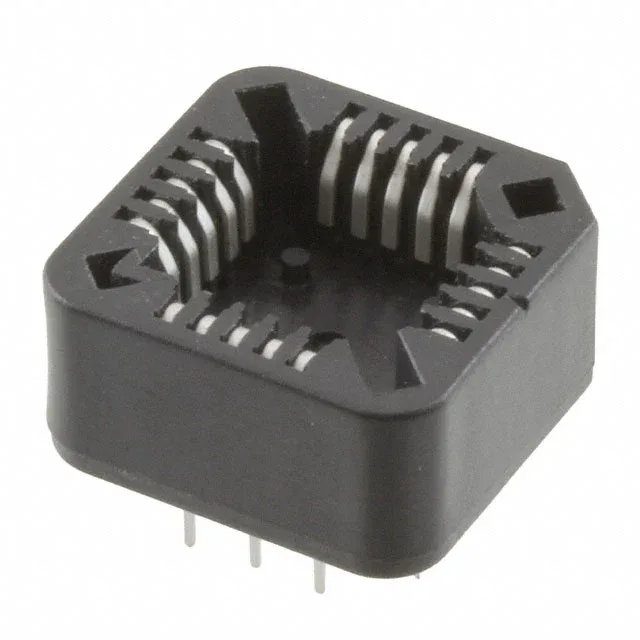

Assmann WSW Components ACCS Series

7 variants · Assmann WSW Components

About the Assmann WSW Components ACCS Series

The Assmann WSW Components ACCS Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - mating of Tin, contact finish - post of Tin and contact finish thickness - mating of 160.0µin (4.06µm). Variants differ by housing material, mounting type and number of positions or pins, so you can match the exact housing material your application requires using the selection guide below. All listed Assmann WSW Components ACCS Series part numbers are active and orderable.

Select a variant by

Housing material: Polyamide (PA9T), Nylon 9T, Glass Filled · Polybutylene Terephthalate (PBT)
Mounting type: Surface Mount · Through Hole
Number of positions or pins: 20 (4 x 5) · 28 (4 x 7) · 32 (2 x 7, 2 x 9) · 44 (4 x 11) · 68 (4 x 17) · 84 (4 x 21)
Pitch - post: 0.050\" (1.27mm) · 0.100\" (2.54mm)
Termination post length: - · 0.132\" (3.35mm)

Shared specifications

Contact finish - mating: Tin
Contact finish - post: Tin
Contact finish thickness - mating: 160.0µin (4.06µm)
Contact finish thickness - post: 160.0µin (4.06µm)
Contact material - mating: Phosphor Bronze
Contact material - post: Phosphor Bronze
Contact resistance: 15mOhm
Current rating: 1 A
Features: Closed Frame
Material flammability rating: UL94 V-0
Operating temperature: -40°C ~ 105°C
Package: Tube

Variant comparison

Parameter	A-CCS 020-Z-SM	A-CCS 020-Z-T	A-CCS 028-Z-SM	A-CCS 032-Z-SM	A-CCS 044-Z-T	A-CCS 068-Z-T
Housing material	Polyamide (PA9T), Nylon 9T, Glass Filled	Polybutylene Terephthalate (PBT)	Polyamide (PA9T), Nylon 9T, Glass Filled	Polyamide (PA9T), Nylon 9T, Glass Filled	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting type	Surface Mount	Through Hole	Surface Mount	Surface Mount	Through Hole	Through Hole
Number of positions or pins	20 (4 x 5)	20 (4 x 5)	28 (4 x 7)	32 (2 x 7, 2 x 9)	44 (4 x 11)	68 (4 x 17)
Pitch - post	0.050\" (1.27mm)	0.100\" (2.54mm)	0.050\" (1.27mm)	0.050\" (1.27mm)	0.100\" (2.54mm)	0.100\" (2.54mm)
Termination post length	-	0.132\" (3.35mm)	-	-	0.132\" (3.35mm)	0.132\" (3.35mm)

Request a quote on any Assmann WSW Components ACCS Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Assmann WSW Components ACCS Series variants differ?: Assmann WSW Components ACCS Series part numbers differ by housing material, mounting type, number of positions or pins and pitch - post. Use the selection guide above to pick by housing material.
How many Assmann WSW Components ACCS Series part numbers are listed?: 7 Assmann WSW Components ACCS Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Assmann WSW Components ACCS Series?: Request a quote (RFQ) for any Assmann WSW Components ACCS Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
