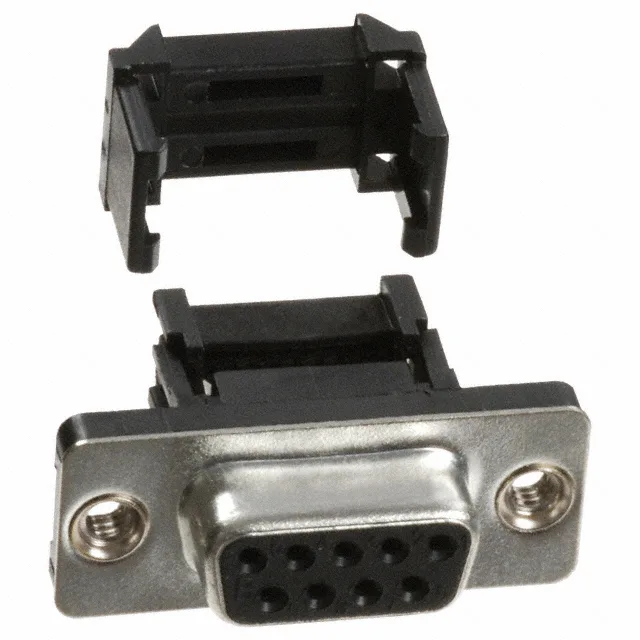

A-DFF 09 LPIII/Z
Assmann WSW Components
9Tray26-28 AWG
Ref. price$1.8500
Lead time on requestGet quote
Assmann WSW Components ADFF D Sub Assemblies Series
5 variants · Assmann WSW Components
About the Assmann WSW Components ADFF D Sub Assemblies Series
The Assmann WSW Components ADFF D Sub Assemblies Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of -, connector type of Receptacle, Female Sockets and contact finish of Gold. Variants differ by color, flange feature and positions, so you can match the exact color your application requires using the selection guide below. All listed Assmann WSW Components ADFF D Sub Assemblies Series part numbers are active and orderable.
Select a variant by
- Color
- - · Black
- Flange feature
- Housing/Shell (4-40) · Housing/Shell (Unthreaded)
- Positions
- 9 · 15 · 25 · 37
- Shell material, finish
- Steel · Steel, Tin Plated
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B) · 4 (DC, C)
Shared specifications
- Backset spacing
- -
- Connector type
- Receptacle, Female Sockets
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Contact form
- -
- Contact material
- Copper Alloy
- Current rating
- 3A
- Dielectric material
- Polybutylene Terephthalate (PBT), Glass Filled
- Features
- Feed Through, Strain Relief
- IP rating
- -
- Material flammability rating
- UL94 V-0
- Mounting
- Free Hanging (In-Line)
Variant comparison
| Parameter | A-DFF 09 LPIII/Z | A-DFF 09 LPIII/Z-UNC | A-DFF 15 LPIII/Z-UNC | A-DFF 25 LPIII/Z-UNC | A-DFF 37 LPIII/Z-UNC |
|---|---|---|---|---|---|
| Color | - | Black | Black | Black | Black |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Positions | 9 | 9 | 15 | 25 | 37 |
| Shell material, finish | Steel | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell size, connector layout | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) | 4 (DC, C) |
Request a quote on any Assmann WSW Components ADFF D Sub Assemblies Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
