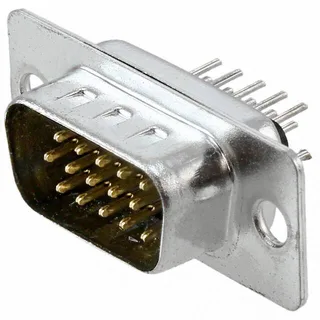

A-HDS 15 LL/Z
Assmann WSW Components
15-20°C ~ 85°CGrounding Indents
Ref. price$0.83
Lead time on requestGet quote ›
Assmann WSW Components AHDS Series
15 variants · Assmann WSW Components
About the Assmann WSW Components AHDS Series
The Assmann WSW Components AHDS Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Plug, Male Pins and contact finish of Gold. Variants differ by dielectric material, flange feature and mounting type, so you can match the exact dielectric material your application requires using the selection guide below. All listed Assmann WSW Components AHDS Series part numbers are active and orderable.
Select a variant by
- Dielectric material
- Acrylonitrile Butadiene Styrene (ABS) · Polybutylene Terephthalate (PBT), Glass Filled
- Flange feature
- Board Side (4-40) · Cable Side, Male Jackscrew · Housing/Shell (Unthreaded) · Mating Side, Female Screwlock (4-40)
- Mounting type
- Free Hanging (In-Line) · Through Hole
- Operating temperature
- -55°C ~ 105°C · -20°C ~ 60°C · -20°C ~ 85°C
- Positions
- 15 · 26 · 44 · 62
- Shell size, connector layout
- 1 (DE, E) High Density · 2 (DA, A) High Density · 3 (DB, B) High Density · 4 (DC, C) High Density
- Termination
- Solder · Solder Cup
- Features
- Board Lock, Grounding Indents · Grounding Indents
Shared specifications
- Color
- Black
- Connector type
- Plug, Male Pins
- Contact finish
- Gold
- Contact material
- Copper Alloy
- Gender
- Signal
- Package
- Tray
- Rows
- 3
Variant comparison
| Parameter | A-HDS15-HOOD-WP | A-HDS 15 LL/Z | A-HDS 15 PP/Z | A-HDS 15 PP/Z-UNC1 | A-HDS 15 PP/Z-UNC3 | A-HDS26-HOOD-WP |
|---|---|---|---|---|---|---|
| Dielectric material | Acrylonitrile Butadiene Styrene (ABS) | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Acrylonitrile Butadiene Styrene (ABS) |
| Flange feature | Cable Side, Male Jackscrew | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Board Side (4-40) | Cable Side, Male Jackscrew |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) |
| Operating temperature | -20°C ~ 60°C | -20°C ~ 85°C | -20°C ~ 85°C | -55°C ~ 105°C | -55°C ~ 105°C | -20°C ~ 60°C |
| Positions | 15 | 15 | 15 | 15 | 15 | 26 |
| Shell size, connector layout | 1 (DE, E) High Density | 1 (DE, E) High Density | 1 (DE, E) High Density | 1 (DE, E) High Density | 1 (DE, E) High Density | 2 (DA, A) High Density |
| Termination | Solder Cup | Solder Cup | Solder | Solder | Solder | Solder Cup |
| Features | — | Grounding Indents | Grounding Indents | Grounding Indents | Board Lock, Grounding Indents | — |
Request a quote on any Assmann WSW Components AHDS Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Assmann WSW Components AHDS Series variants differ?
- Assmann WSW Components AHDS Series part numbers differ by dielectric material, flange feature, mounting type and operating temperature. Use the selection guide above to pick by dielectric material.
- How many Assmann WSW Components AHDS Series part numbers are listed?
- 15 Assmann WSW Components AHDS Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Assmann WSW Components AHDS Series?
- Request a quote (RFQ) for any Assmann WSW Components AHDS Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
