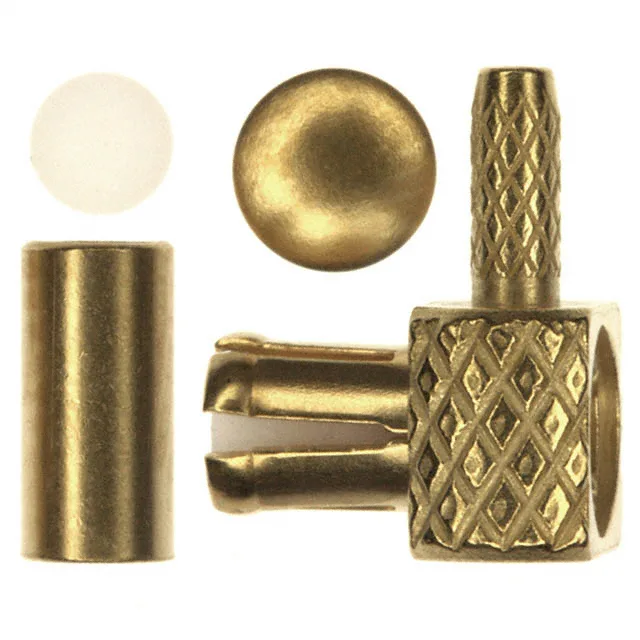

133-9402-101
Cinch Connectivity Solutions Johnson
Free Hanging (In-Line), Right AngleBulkPlug, Male Pin
Ref. price$13.1400
Lead time on requestGet quote
Cinch Connectivity Solutions Johnson 1339 Series
2 variants · Cinch Connectivity Solutions Johnson
About the Cinch Connectivity Solutions Johnson 1339 Series
The Cinch Connectivity Solutions Johnson 1339 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Gold, body material of Copper Alloy and center contact plating of Gold. Variants differ by cable group, center contact material and connector type, so you can match the exact cable group your application requires using the selection guide below. All listed Cinch Connectivity Solutions Johnson 1339 Series part numbers are active and orderable.
Select a variant by
- Cable group
- - · RG-178, 196
- Center contact material
- Beryllium Copper · Copper Alloy
- Connector type
- Jack, Female Socket · Plug, Male Pin
- Includes
- - · 4 pcs - 1 Connector, 1 End Cap, 1 Insulator, 1 Sleeve
- Insertion loss
- - · 0.2dB
- Mounting
- Board Edge, End Launch · Free Hanging (In-Line), Right Angle
- Shield termination
- Crimp · Solder
- Voltage rating
- 250 V · 335 V
Shared specifications
- Body finish
- Gold
- Body material
- Copper Alloy
- Center contact plating
- Gold
- Contact termination
- Solder
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Snap-On
- Features
- Non-Magnetic
- Frequency - max
- 6 GHz
- Housing color
- Gold
- Impedance
- 50 Ohms
- IP rating
- -
- Mating cycles
- 500
Variant comparison
| Parameter | 133-9402-101 | 133-9701-801 |
|---|---|---|
| Cable group | RG-178, 196 | - |
| Center contact material | Copper Alloy | Beryllium Copper |
| Connector type | Plug, Male Pin | Jack, Female Socket |
| Includes | 4 pcs - 1 Connector, 1 End Cap, 1 Insulator, 1 Sleeve | - |
| Insertion loss | 0.2dB | - |
| Mounting | Free Hanging (In-Line), Right Angle | Board Edge, End Launch |
| Shield termination | Crimp | Solder |
| Voltage rating | 250 V | 335 V |
Request a quote on any Cinch Connectivity Solutions Johnson 1339 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
