Conec 15-000473
MPN15-000473
Active

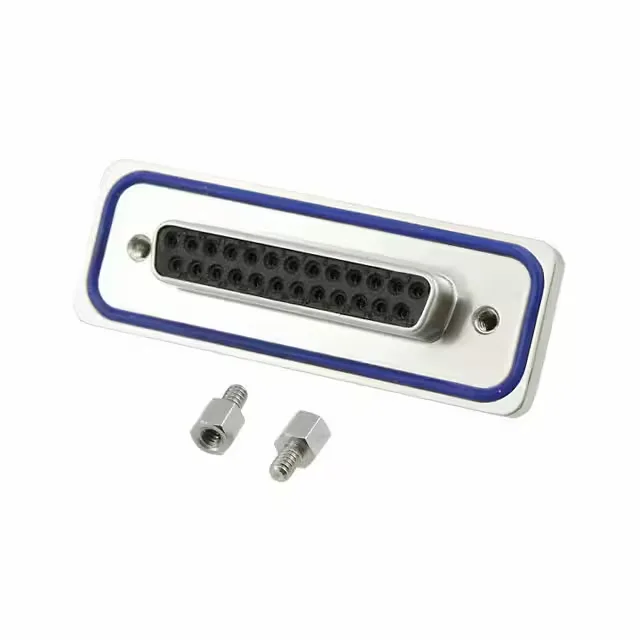

CONN D-SUB RCPT 25P PNL MNT SLDR
$24.27Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 7.5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -25°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Zinc Die Cast, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | 8.00µin (0.203µm) |
