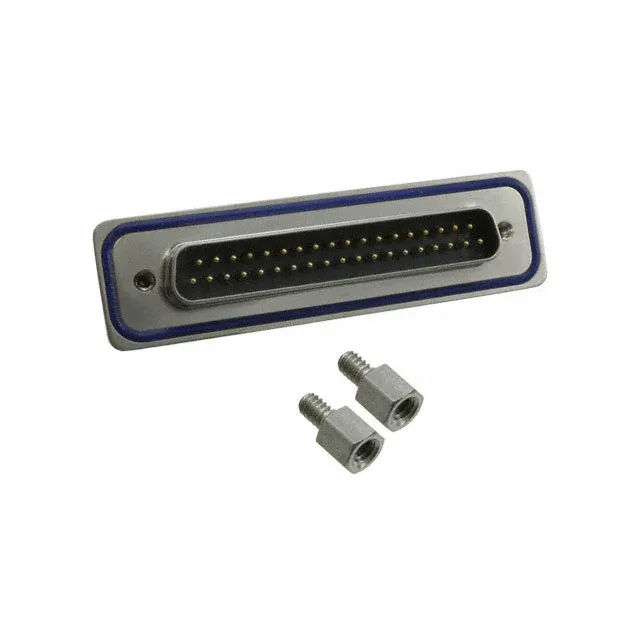

CONN D-SUB PLUG 37POS R/A SLDR
$38.32Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Gender | Signal |
| Mounting type | Board Edge, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 7.5A |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Shell size, connector layout | 4 (DC, C) |
| Operating temperature | -25°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Zinc Die Cast, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Board Lock, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Backset spacing | 0.261\" (6.63mm) |
| Positions | 37 |
| Contact finish thickness | 8.00µin (0.203µm) |
Sourcing this connector
Conec 15-000763 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Conec and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
