Conec 15-006243
MPN15-006243
Active

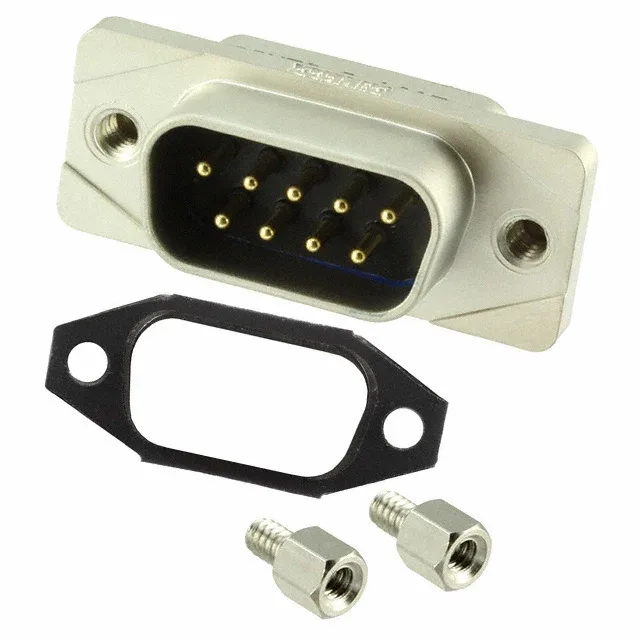

CONN D-SUB PLUG 9POS PNL MNT
$25.69Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSlimCon
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SlimCon |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 7.5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Zinc Die Cast, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Gasket |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Cable Side (4-40); Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
