163A11089X
Conec
25Grounding Indents2
Ref. price$9.5
Lead time on requestGet quote ›

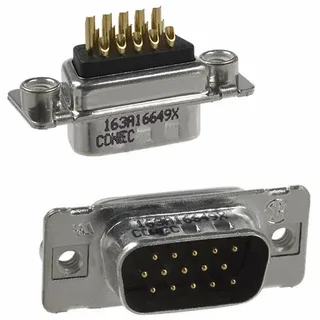

Conec 163A1 Series
22 variants · Conec
About the Conec 163A1 Series
The Conec 163A1 Series series groups 22 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Plug, Male Pins and contact finish of Gold. Variants differ by contact finish thickness, current rating and features, so you can match the exact contact finish thickness your application requires using the selection guide below. All listed Conec 163A1 Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness
- 8.00µin (0.203µm) · Flash
- Current rating
- 3A · 7.5A
- Features
- Board Lock, Grounding Indents · Grounding Indents · Grounding Indents, Mounting Brackets
- Flange feature
- Board Side (4-40) · Housing/Shell (Unthreaded) · Mating Side (4-40)
- Mounting type
- Board Edge, Through Hole, Right Angle · Free Hanging (In-Line) · Panel Mount, Through Hole · Through Hole
- Package
- Bulk · Tray
- Positions
- 9 · 15 · 25 · 26 · 37 · 50
- Rows
- 2 · 3
Shared specifications
- Color
- Black
- Connector type
- Plug, Male Pins
- Contact finish
- Gold
- Contact material
- Copper Alloy
- Dielectric material
- Polybutylene Terephthalate (PBT), Glass Filled
- Gender
- Signal
- Ingress protection
- IP20
- Material flammability rating
- UL94 V-0
- Operating temperature
- -55°C ~ 125°C
- Shell material, finish
- Steel, Tin Plated
Variant comparison
| Parameter | 163A11089X | 163A11099X | 163A11179X | 163A11369X | 163A13829X | 163A16169X |
|---|---|---|---|---|---|---|
| Contact finish thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | Flash | Flash |
| Current rating | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A |
| Features | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents, Mounting Brackets | Board Lock, Grounding Indents |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Board Side (4-40) | Mating Side (4-40) | Board Side (4-40) |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole |
| Package | Tray | Tray | Bulk | Bulk | Bulk | Bulk |
| Positions | 25 | 37 | 15 | 9 | 9 | 15 |
| Rows | 2 | 2 | 2 | 2 | 2 | 2 |
Request a quote on any Conec 163A1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Conec 163A1 Series variants differ?
- Conec 163A1 Series part numbers differ by contact finish thickness, current rating, features and flange feature. Use the selection guide above to pick by contact finish thickness.
- How many Conec 163A1 Series part numbers are listed?
- 22 Conec 163A1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Conec 163A1 Series?
- Request a quote (RFQ) for any Conec 163A1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
