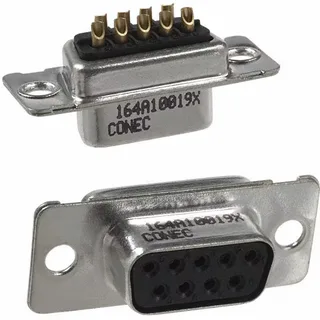

164A10019X
Conec
9Tray2
Ref. price$6.79
Lead time on requestGet quote ›
Conec 164A1 Series
28 variants · Conec
About the Conec 164A1 Series
The Conec 164A1 Series series groups 28 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Receptacle, Female Sockets and contact finish of Gold. Variants differ by contact finish thickness, flange feature and mounting type, so you can match the exact contact finish thickness your application requires using the selection guide below. All listed Conec 164A1 Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness
- 8.00µin (0.203µm) · Flash
- Flange feature
- Board Side (4-40) · Cable Side (4-40) · Housing/Shell (4-40) · Housing/Shell (Unthreaded) · Mating Side (4-40)
- Mounting type
- Board Edge, Through Hole, Right Angle · Free Hanging (In-Line) · Panel Mount, Through Hole · Through Hole
- Package
- Bulk · Tray
- Positions
- 9 · 15 · 25
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B)
- Termination
- Solder · Solder Cup · Wire Wrap
- Features
- Board Lock · Board Lock, Mounting Brackets
Shared specifications
- Color
- Black
- Connector type
- Receptacle, Female Sockets
- Contact finish
- Gold
- Contact form
- Machined
- Contact material
- Copper Alloy
- Current rating
- 7.5A
- Dielectric material
- Polybutylene Terephthalate (PBT), Glass Filled
- Gender
- Signal
- Ingress protection
- IP20
- Material flammability rating
- UL94 V-0
- Operating temperature
- -55°C ~ 125°C
- Rows
- 2
Variant comparison

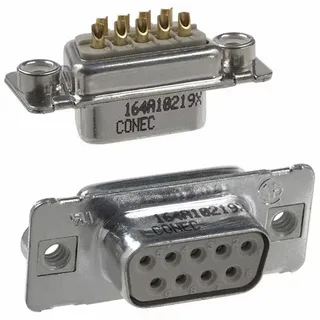

| Parameter | 164A10019X | 164A10029X | 164A10039X | 164A10079X | 164A10219X | 164A10439X |
|---|---|---|---|---|---|---|
| Contact finish thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Board Side (4-40) |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Panel Mount, Through Hole |
| Package | Tray | Tray | Tray | Bulk | Tray | Bulk |
| Positions | 9 | 15 | 25 | 15 | 9 | 25 |
| Shell size, connector layout | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) | 2 (DA, A) | 1 (DE, E) | 3 (DB, B) |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder | Solder Cup | Wire Wrap |
| Features | — | — | — | — | — | — |
Request a quote on any Conec 164A1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Conec 164A1 Series variants differ?
- Conec 164A1 Series part numbers differ by contact finish thickness, flange feature, mounting type and package. Use the selection guide above to pick by contact finish thickness.
- How many Conec 164A1 Series part numbers are listed?
- 28 Conec 164A1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Conec 164A1 Series?
- Request a quote (RFQ) for any Conec 164A1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
