SD-80
CUI Devices
SDSolder CupBlack, Silver
Ref. price$2.6
Lead time on requestGet quote ›
CUI Devices SD80 Series
3 variants · CUI Devices
About the CUI Devices SD80 Series
The CUI Devices SD80 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact material of Brass, orientation of Keyed and positions of 8. Variants differ by color, connector type and contact finish - mating, so you can match the exact color your application requires using the selection guide below. All listed CUI Devices SD80 Series part numbers are active and orderable.
Select a variant by
- Color
- Black, Silver · Silver
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Contact finish - mating
- Nickel · Silver · Tin
- Current rating
- 1A, 2A · 2A
- Fastening type
- Push-Pull · Threaded
- Mounting type
- Free Hanging (In-Line) · Panel Mount
- Operating temperature
- -40°C ~ 85°C · 5°C ~ 70°C
- Package
- Bag · Box
Shared specifications
- Contact material
- Brass
- Orientation
- Keyed
- Positions
- 8
- Primary material
- Metal
- Shell finish
- Nickel
- Shell size - insert
- DIN (270 Degree)
Variant comparison
| Parameter | SD-80 | SD-80LP | SD-80LS |
|---|---|---|---|
| Color | Black, Silver | Silver | Silver |

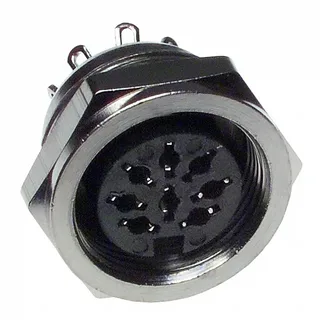

| Connector type | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets |
| Contact finish - mating | Nickel | Silver | Tin |
| Current rating | 1A, 2A | 2A | 2A |
| Fastening type | Push-Pull | Threaded | Threaded |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Operating temperature | 5°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package | Bag | Bag | Box |
Request a quote on any CUI Devices SD80 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the CUI Devices SD80 Series variants differ?
- CUI Devices SD80 Series part numbers differ by color, connector type, contact finish - mating and current rating. Use the selection guide above to pick by color.
- How many CUI Devices SD80 Series part numbers are listed?
- 3 CUI Devices SD80 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for CUI Devices SD80 Series?
- Request a quote (RFQ) for any CUI Devices SD80 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
