325021-03-0
Curtis Industries
0.325\" (8.26mm)32500Bulk
Ref. price$3.02
Lead time on requestGet quote

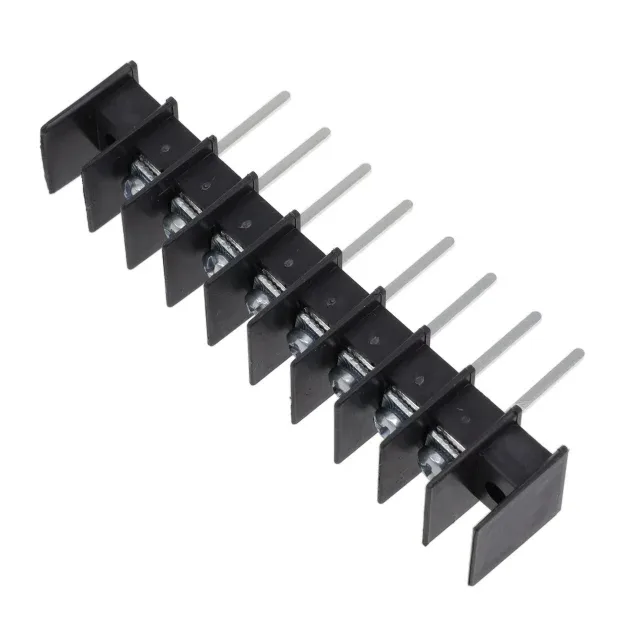

Curtis Industries 325021 Series
2 variants · Curtis Industries
About the Curtis Industries 325021 Series
The Curtis Industries 325021 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common barrier type of 2 Wall (Dual), bottom termination of Wire Wrap and current rating of 15A. Variants differ by number of circuits and number of wire entries, so you can match the exact number of circuits your application requires using the selection guide below. All listed Curtis Industries 325021 Series part numbers are active and orderable.
Select a variant by
- Number of circuits
- 3 · 8
- Number of wire entries
- 3 · 8
Shared specifications
- Barrier type
- 2 Wall (Dual)
- Bottom termination
- Wire Wrap
- Current rating
- 15A
- Features
- Flange
- Material - insulation
- Polypropylene (PP)
- Material flammability rating
- UL94 V-0
- Mounting
- Chassis, Panel; Through Hole
- Operating temperature
- 105°C
- Package
- Bulk
- Pitch
- 0.325\" (8.26mm)
- Rows
- 1
- Terminal block type
- Barrier Block
Variant comparison
| Parameter | 325021-03-0 | 325021-08-0 |
|---|---|---|
| Number of circuits | 3 | 8 |
| Number of wire entries | 3 | 8 |
Request a quote on any Curtis Industries 325021 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
