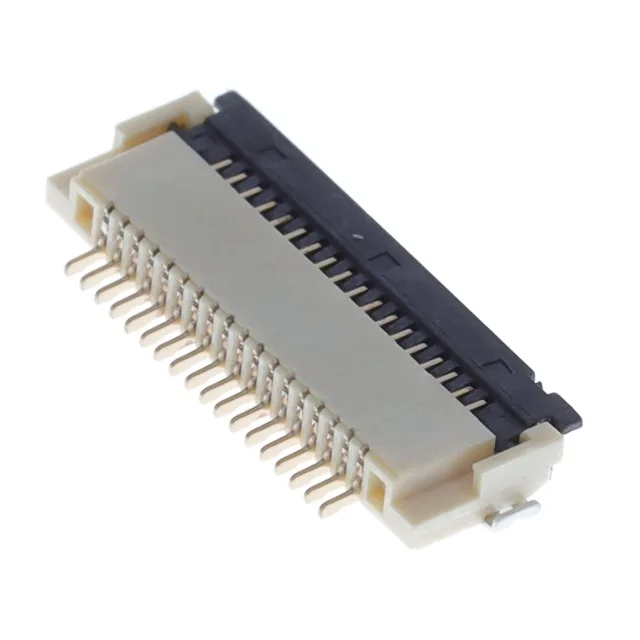

CF5008FD0R0-05-NH
Cvilux USA
8-40°C ~ 85°C0.020\" (0.50mm)
Ref. price$0.3000
Lead time on requestGet quote ›
Cvilux USA CF50 Series
15 variants · Cvilux USA
About the Cvilux USA CF50 Series
The Cvilux USA CF50 Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actuator color of Black, actuator material of Thermoplastic, Halogen Free and cable end type of Straight. Variants differ by contact finish, contact finish thickness and operating temperature, so you can match the exact contact finish your application requires using the selection guide below. All listed Cvilux USA CF50 Series part numbers are active and orderable.
Select a variant by
- Contact finish
- Gold · Tin
- Contact finish thickness
- 0.79µin (0.02µm) · 100.0µin (2.54µm)
- Operating temperature
- -55°C ~ 85°C · -40°C ~ 85°C
- Pitch
- 0.020\" (0.50mm) · 0.039\" (1.00mm)
- Positions
- 8 · 10 · 11 · 12 · 14 · 15 · 16 · 18 · 20
Shared specifications
- Actuator color
- Black
- Actuator material
- Thermoplastic, Halogen Free
- Cable end type
- Straight
- Connector (Contact type)
- Contacts, Bottom
- Contact material
- Phosphor Bronze
- Current rating
- 0.5A
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- FFC, FCB thickness
- 0.30mm
- Flat flex type
- FFC, FPC
- Height above board
- 0.057\" (1.45mm)
- Housing color
- Natural
- Housing material
- Thermoplastic, Halogen Free
Variant comparison
| Parameter | CF5008FD0R0-05-NH | CF50101D0R0-10-NH | CF5010FD0R0-05-NH | CF5011FD0R0-05-NH | CF50121D0R0-10-NH | CF5012FD0R0-05-NH |
|---|---|---|---|---|---|---|
| Contact finish | Gold | Tin | Gold | Gold | Tin | Gold |
| Contact finish thickness | 0.79µin (0.02µm) | 100.0µin (2.54µm) | 0.79µin (0.02µm) | 0.79µin (0.02µm) | 100.0µin (2.54µm) | 0.79µin (0.02µm) |
| Operating temperature | -40°C ~ 85°C | -55°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 85°C | -40°C ~ 85°C |
| Pitch | 0.020\" (0.50mm) | 0.039\" (1.00mm) | 0.020\" (0.50mm) | 0.020\" (0.50mm) | 0.039\" (1.00mm) | 0.020\" (0.50mm) |
| Positions | 8 | 10 | 10 | 11 | 12 | 12 |
Request a quote on any Cvilux USA CF50 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Cvilux USA CF50 Series variants differ?
- Cvilux USA CF50 Series part numbers differ by contact finish, contact finish thickness, operating temperature and pitch. Use the selection guide above to pick by contact finish.
- How many Cvilux USA CF50 Series part numbers are listed?
- 15 Cvilux USA CF50 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Cvilux USA CF50 Series?
- Request a quote (RFQ) for any Cvilux USA CF50 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
