CWN-300-50-0000
CW Industries
50SolderBoard to Cable/Wire
Ref. price$10.22
Lead time on requestGet quote ›
CW Industries CWN3 Series
4 variants · CW Industries
About the CW Industries CWN3 Series
The CW Industries CWN3 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, contact finish - mating of Gold and contact finish - post of Nickel. Variants differ by contact length - post, insulation height and mounting type, so you can match the exact contact length - post your application requires using the selection guide below. All listed CW Industries CWN3 Series part numbers are active and orderable.
Select a variant by
- Contact length - post
- 0.090\" (2.29mm) · 0.610\" (15.49mm)
- Insulation height
- 0.291\" (7.40mm) · 0.681\" (17.30mm)
- Mounting type
- Through Hole · Through Hole, Right Angle
- Positions
- 10 · 16 · 50
- Termination
- Solder · Wire Wrap
Shared specifications
- Connector type
- Header
- Contact finish - mating
- Gold
- Contact finish - post
- Nickel
- Contact finish thickness - mating
- 10.0µin (0.25µm)
- Contact finish thickness - post
- 50.0µin (1.27µm)
- Contact length - mating
- 0.240\" (6.10mm)
- Contact material
- Phosphor Bronze
- Contact shape
- Circular
- Current rating
- 1A
- Fastening type
- Push-Pull
- Features
- Keying Slot, Mounting Flange
- Gender
- Male Pin
Variant comparison

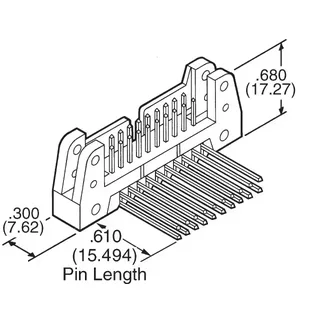

| Parameter | CWN-300-50-0000 | CWN-320-10-0000 | CWN-370-10-0000 | CWN-370-16-0000 |
|---|---|---|---|---|
| Contact length - post | 0.090\" (2.29mm) | 0.610\" (15.49mm) | 0.610\" (15.49mm) | 0.610\" (15.49mm) |
| Insulation height | 0.291\" (7.40mm) | 0.291\" (7.40mm) | 0.681\" (17.30mm) | 0.681\" (17.30mm) |
| Mounting type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole |
| Positions | 50 | 10 | 10 | 16 |
| Termination | Solder | Wire Wrap | Wire Wrap | Wire Wrap |
Request a quote on any CW Industries CWN3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the CW Industries CWN3 Series variants differ?
- CW Industries CWN3 Series part numbers differ by contact length - post, insulation height, mounting type and positions. Use the selection guide above to pick by contact length - post.
- How many CW Industries CWN3 Series part numbers are listed?
- 4 CW Industries CWN3 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for CW Industries CWN3 Series?
- Request a quote (RFQ) for any CW Industries CWN3 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
