How do the Dinkle Corporation, USA DP6T Series variants differ?

Dinkle Corporation, USA DP6T Series part numbers differ by color, material flammability rating, number of levels and package. Use the selection guide above to pick by color.

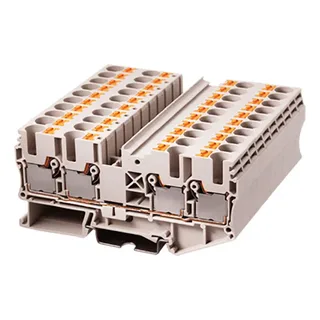

Dinkle Corporation, USA DP6T Series

3 variants · Dinkle Corporation, USA

About the Dinkle Corporation, USA DP6T Series

The Dinkle Corporation, USA DP6T Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common material - insulation of Polyamide (PA), Nylon, terminal - width of 8.0mm and type of Feed Through. Variants differ by color, material flammability rating and number of levels, so you can match the exact color your application requires using the selection guide below. All listed Dinkle Corporation, USA DP6T Series part numbers are active and orderable.

Select a variant by

Color: Gray · Green, Yellow
Material flammability rating: UL91 V-0 · UL94 V-0
Number of levels: 1 · 1; Grounded
Package: Box · Bulk
Positions: 3 · 4
Stripping length: 12mm · 13mm
Termination style: Push In · Push In, Spring
Wire gauge or range - mm2: 0.5-6mm² · 0.5-10mm²

Shared specifications

Material - insulation: Polyamide (PA), Nylon
Terminal - width: 8.0mm
Type: Feed Through
Voltage - IEC: 1000V
Voltage - UL: 600V
Wire gauge or range - AWG: 8-20 AWG

Variant comparison

Parameter	DP6-TN	DP6-TR	DP6-TN-PE
Color	Gray	Gray	Green, Yellow
Material flammability rating	UL94 V-0	UL94 V-0	UL91 V-0
Number of levels	1	1	1; Grounded
Package	Box	Box	Bulk
Positions	3	4	3
Stripping length	13mm	13mm	12mm
Termination style	Push In	Push In	Push In, Spring
Wire gauge or range - mm2	0.5-6mm²	0.5-6mm²	0.5-10mm²

Request a quote on any Dinkle Corporation, USA DP6T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Dinkle Corporation, USA DP6T Series variants differ?: Dinkle Corporation, USA DP6T Series part numbers differ by color, material flammability rating, number of levels and package. Use the selection guide above to pick by color.
How many Dinkle Corporation, USA DP6T Series part numbers are listed?: 3 Dinkle Corporation, USA DP6T Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Dinkle Corporation, USA DP6T Series?: Request a quote (RFQ) for any Dinkle Corporation, USA DP6T Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
