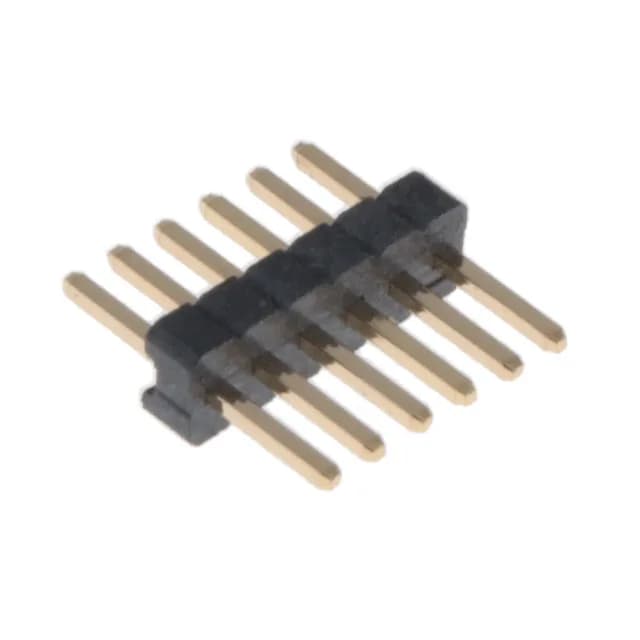

GCT BD020-06-A-J-0350-0300-L-G
MPNBD020-06-A-J-0350-0300-L-G
Active
06W, 1.27MM PITCH PIN HDR, SIL,
$0.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBD020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BD020 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.055\" (1.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Box |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 6 |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.311\" (7.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
