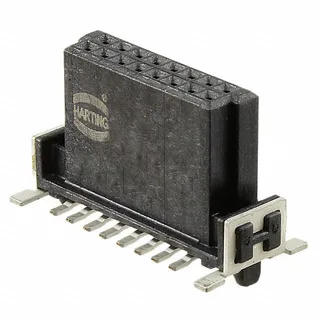

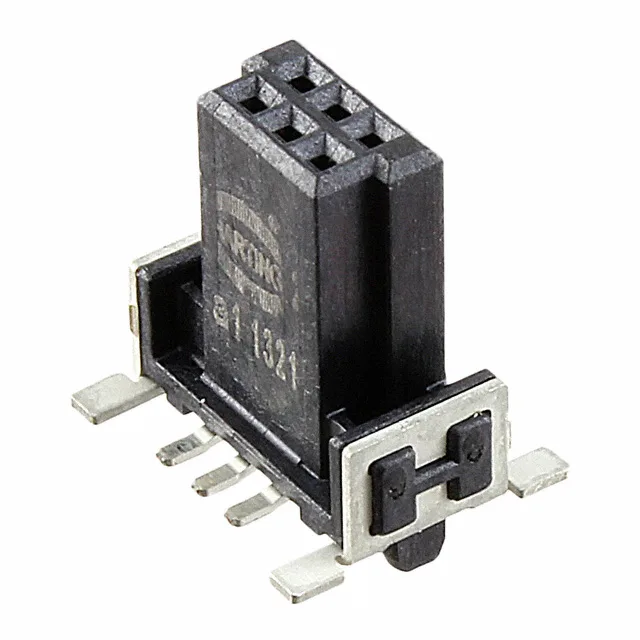

HARTING 15220 Series

13 variants · HARTING

About the HARTING 15220 Series

The HARTING 15220 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, connector type of Receptacle and contact finish - mating of Gold. Variants differ by mated stacking heights, positions and style, so you can match the exact mated stacking heights your application requires using the selection guide below. All listed HARTING 15220 Series part numbers are active and orderable.

Select a variant by

Mated stacking heights: - · 10.8mm ~ 13.8mm
Positions: 6 · 8 · 12 · 16 · 20 · 26 · 32 · 40 · 50 · 60
Style: Board to Board · Board to Board or Cable

Shared specifications

Applications: General Purpose
Connector type: Receptacle
Contact finish - mating: Gold
Contact finish - post: Tin
Contact finish thickness - mating: -
Contact finish thickness - post: -
Contact length - post: -
Contact material: Copper Alloy
Contact shape: Square
Current rating: -
Fastening type: Push-Pull
Features: Board Guide, Pick and Place, Solder Retention

Variant comparison

Parameter	15220062601000	15220082601000	15220122401000	15220162601000	15220202401000	15220202601000
Mated stacking heights	10.8mm ~ 13.8mm	10.8mm ~ 13.8mm	-	10.8mm ~ 13.8mm	-	10.8mm ~ 13.8mm
Positions	6	8	12	16	20	20
Style	Board to Board or Cable	Board to Board or Cable	Board to Board	Board to Board or Cable	Board to Board	Board to Board or Cable

Request a quote on any HARTING 15220 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
