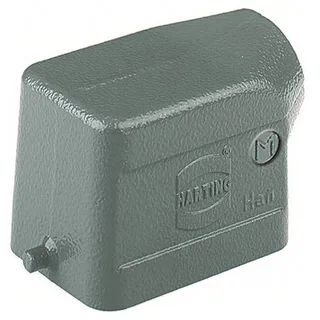

19300061541
HARTING
6BSide EntryHan® B
Ref. price$19.87
Lead time on requestGet quote ›
HARTING 1930 Series
6 variants · HARTING
About the HARTING 1930 Series
The HARTING 1930 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common housing finish of Powder Coated, housing material of Aluminum, Die Cast and ingress protection of IP65 - Dust Tight, Water Resistant. Variants differ by connector type, dimensions and housing color, so you can match the exact connector type your application requires using the selection guide below. All listed HARTING 1930 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Hood · Hood - Coupling
- Dimensions
- 6B · 16B · 24B
- Housing color
- Black · Gray
- Lock location
- Locking Clip (1) on Base Bottom · Locking Clip (1) on Hood · Locking Clip (2) on Base Bottom
- Size (Dimension)
- 2.362\" L x 1.693\" W x 2.016\" H (60.00mm x 43.00mm x 51.20mm) · 3.681\" L x 1.693\" W x 1.866\" H (93.50mm x 43.00mm x 47.40mm) · 3.681\" L x 1.693\" W x 2.992\" H (93.50mm x 43.00mm x 76.00mm) · 4.724\" L x 1.693\" W x 2.992\" H (120.00mm x 43.00mm x 76.00mm)
- Style
- Front Entry, Dual · Side Entry · Top Entry
- Thread size
- M25 · M32 · M40
Shared specifications
- Housing finish
- Powder Coated
- Housing material
- Aluminum, Die Cast
- Ingress protection
- IP65 - Dust Tight, Water Resistant
- Operating temperature
- -40°C ~ 125°C
- Package
- Bulk
Variant comparison

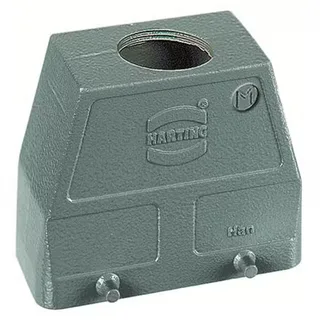

| Parameter | 19300061541 | 19300160427 | 19300160428 | 19300240666 | 19302161751 | 19307160427 |
|---|---|---|---|---|---|---|
| Connector type | Hood | Hood | Hood | Hood | Hood - Coupling | Hood |
| Dimensions | 6B | 16B | 16B | 24B | 16B | 16B |
| Housing color | Gray | Gray | Gray | Gray | Gray | Black |
| Lock location | Locking Clip (1) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (1) on Hood | Locking Clip (2) on Base Bottom |
| Size (Dimension) | 2.362\" L x 1.693\" W x 2.016\" H (60.00mm x 43.00mm x 51.20mm) | 3.681\" L x 1.693\" W x 2.992\" H (93.50mm x 43.00mm x 76.00mm) | 3.681\" L x 1.693\" W x 2.992\" H (93.50mm x 43.00mm x 76.00mm) | 4.724\" L x 1.693\" W x 2.992\" H (120.00mm x 43.00mm x 76.00mm) | 3.681\" L x 1.693\" W x 1.866\" H (93.50mm x 43.00mm x 47.40mm) | 3.681\" L x 1.693\" W x 2.992\" H (93.50mm x 43.00mm x 76.00mm) |
| Style | Side Entry | Top Entry | Top Entry | Front Entry, Dual | Top Entry | Top Entry |
| Thread size | M25 | M32 | M40 | M25 | M25 | M32 |
Request a quote on any HARTING 1930 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the HARTING 1930 Series variants differ?
- HARTING 1930 Series part numbers differ by connector type, dimensions, housing color and lock location. Use the selection guide above to pick by connector type.
- How many HARTING 1930 Series part numbers are listed?
- 6 HARTING 1930 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for HARTING 1930 Series?
- Request a quote (RFQ) for any HARTING 1930 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
