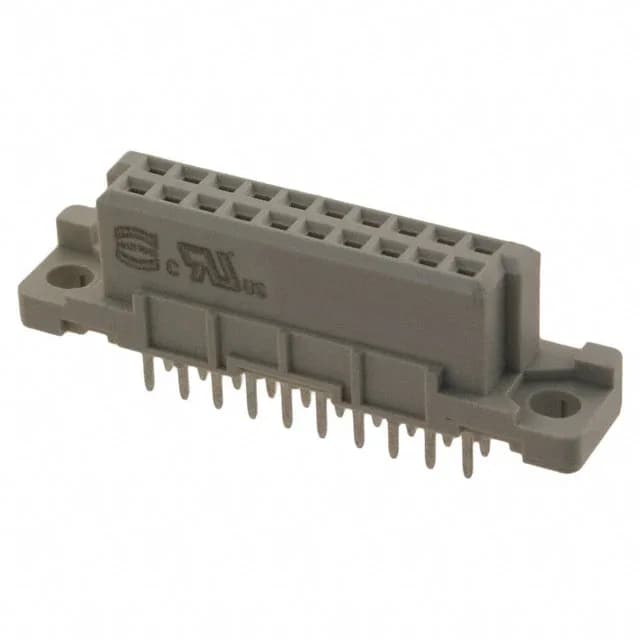

HARTING 9242 Series

2 variants · HARTING

About the HARTING 9242 Series

The HARTING 9242 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Receptacle, Female Sockets, contact finish of Gold and level, class of 2. All listed HARTING 9242 Series part numbers are active and orderable.

Shared specifications

Connector type
Receptacle, Female Sockets
Contact finish
Gold
Level, class
2
Material - insulation
Thermoplastic, Glass Filled
Material flammability rating
UL94 V-0
Mounting
Through Hole
Number of positions loaded
All
Number of rows
2
Package
Bulk
Pitch
0.100\" (2.54mm)
Positions
20
Style
3B

Request a quote on any HARTING 9242 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

About HARTING 9242 Series

What buyers ask when they search HARTING 9242 Series Connector Pitch Positions Plating Specifications.

Common questions

  • What is the HARTING 9242 Series used for?
  • How do I select the correct part number within the HARTING 9242 Series series?
  • What are the key technical specifications for the HARTING 9242 Series?
  • Where can I find the HARTING 9242 Series datasheet and order from authorized distributors?

All variants
