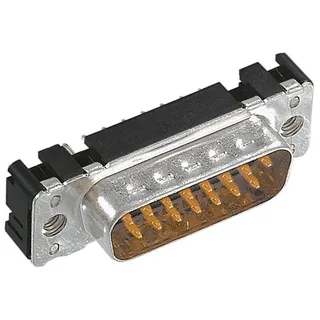

9652216702
HARTING
Grounding IndentsTraySolder
Ref. price$5.81
Lead time on requestGet quote ›
HARTING 9652 Series
9 variants · HARTING
About the HARTING 9652 Series
The HARTING 9652 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Plug, Male Pins, contact form of Stamped and contact material of Copper Alloy. Variants differ by dielectric material, features and flange feature, so you can match the exact dielectric material your application requires using the selection guide below. All listed HARTING 9652 Series part numbers are active and orderable.
Select a variant by
- Dielectric material
- Polybutylene Terephthalate (PBT), Polyester, Glass Filled · Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Features
- Board Lock, Grounding Indents · Grounding Indents
- Flange feature
- Housing/Shell (4-40) · Housing/Shell (M3) · Mating Side, Female Screwlock (4-40)
- Mounting type
- Through Hole · Through Hole, Right Angle
- Package
- Bulk · Tray
Shared specifications
- Connector type
- Plug, Male Pins
- Contact form
- Stamped
- Contact material
- Copper Alloy
- Current rating
- 6.5A
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Operating temperature
- -55°C ~ 125°C
- Positions
- 15
- Rows
- 2
- Shell material, finish
- Steel
- Shell size, connector layout
- 2 (DA, A)
- Termination
- Solder
Variant comparison
| Parameter | 9652216702 | 9652216703 | 9652236801 | 9652626812 | 9652626816 | 9652626817 |
|---|---|---|---|---|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Features | Grounding Indents | Grounding Indents | Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents |
| Flange feature | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (M3) | Housing/Shell (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) |
| Mounting type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Package | Tray | Bulk | Bulk | Tray | Tray | Bulk |
Request a quote on any HARTING 9652 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the HARTING 9652 Series variants differ?
- HARTING 9652 Series part numbers differ by dielectric material, features, flange feature and mounting type. Use the selection guide above to pick by dielectric material.
- How many HARTING 9652 Series part numbers are listed?
- 9 HARTING 9652 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for HARTING 9652 Series?
- Request a quote (RFQ) for any HARTING 9652 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
