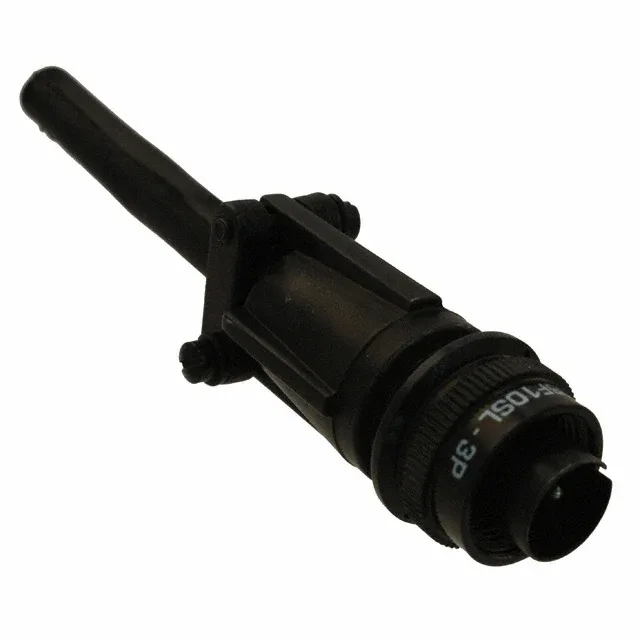

Harwin Inc. C90-3106F10SL-3P
MPNC90-3106F10SL-3P
Active
CONN PLUG MALE 3P SOLDER CUP
$19.28Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC90
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C90 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 500VAC, 700VDC |
| Current rating | 13A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.281\" (7.14mm) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Shell material | Aluminum Alloy |
| Insert material | Synthetic Rubber |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Backshell material, plating | Aluminum Alloy, Black Zinc Cobalt |
| Package | Bag |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Automotive, Industrial |
| Shell finish | Black Zinc Cobalt Alloy |
| Positions | 3 (Power) |
| Shell size - insert | 10SL-3 |
| Contact finish - mating | Silver |
