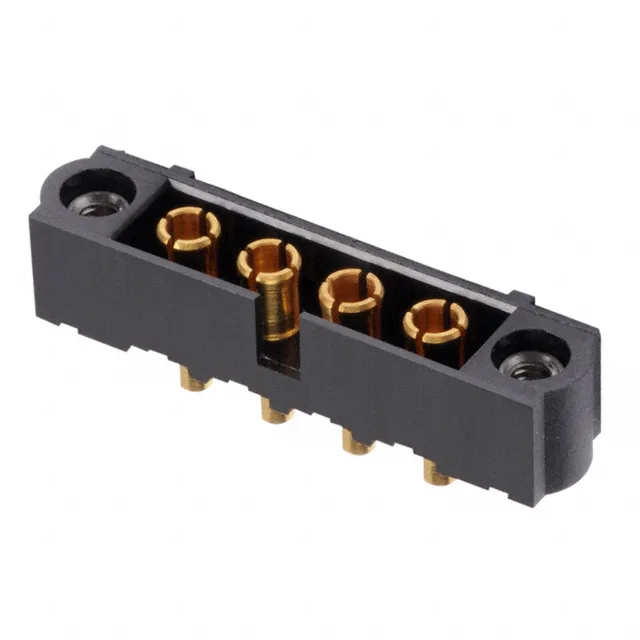

CONN HEADER VERT 4POS 4MM
$31.16Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate Mix-Tek |
| Gender | Male Pin, Power |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Threaded |
| Voltage rating | 800V |
| Current rating | 20A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.220\" (5.60mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated stacking heights | 7.3mm, 9.75mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot, Mating Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 4 |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Sourcing this connector
Harwin Inc. M80-5000000M1-04-331-00-000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Harwin Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
