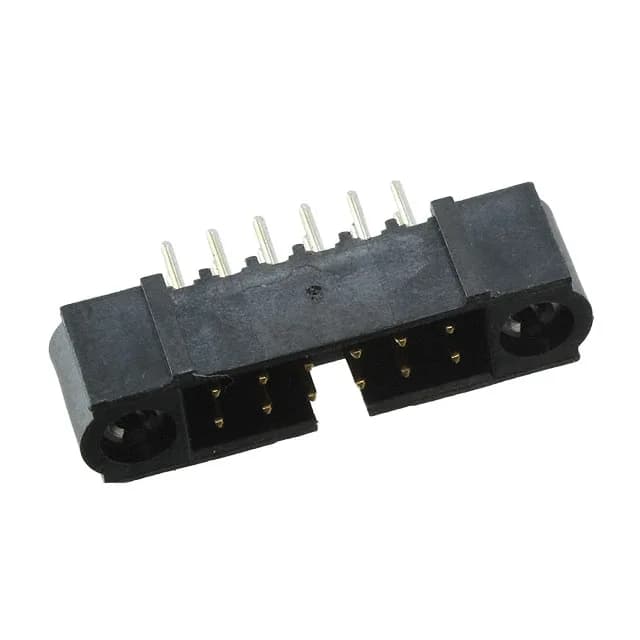

Harwin Inc. M80-5001242
MPNM80-5001242
Active
CONN HEADER VERT 12POS 2MM
$11.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate J-Tek
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate J-Tek |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Threaded |
| Voltage rating | 120V |
| Current rating | 2.2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.220\" (5.60mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot, Mating Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.128\" (3.25mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
