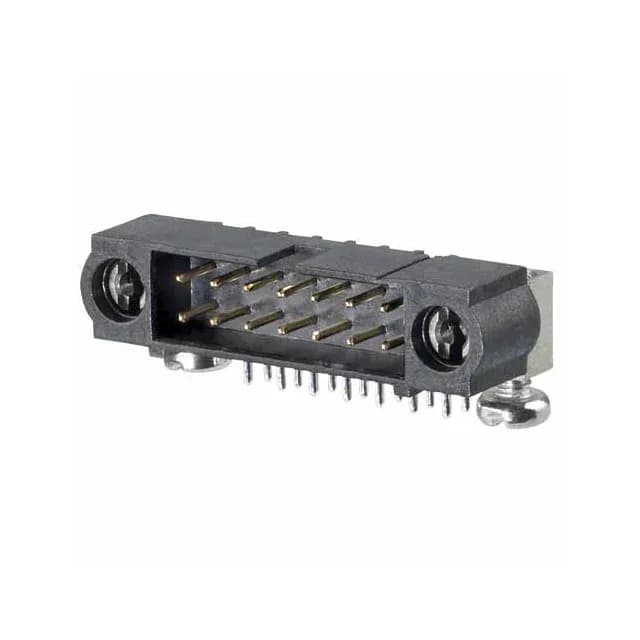

Harwin Inc. M80-5L11042MD
MPNM80-5L11042MD
Active
DATAMATE J-TEK DIL MALE HORIZONT
$13.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate J-Tek
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate J-Tek |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 800VAC/DC |
| Current rating | 2.2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper |
| Insulation color | Black |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 12.0µin (0.30µm) |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
