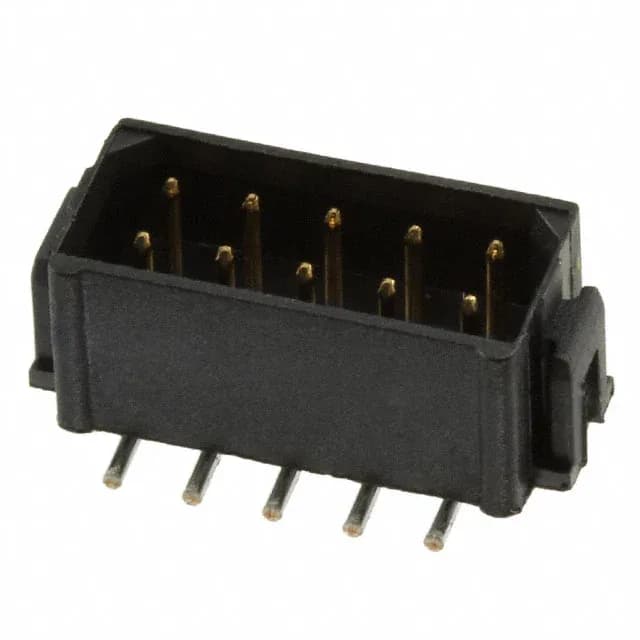

Harwin Inc. M80-8261042
MPNM80-8261042
Active
CONN HEADER SMD 10POS 2MM
$5.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate L-Tek
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate L-Tek |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Voltage rating | 800V |
| Current rating | 2.2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.205\" (5.20mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 7.85mm, 8.45mm, 10.5mm, 14.25mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
