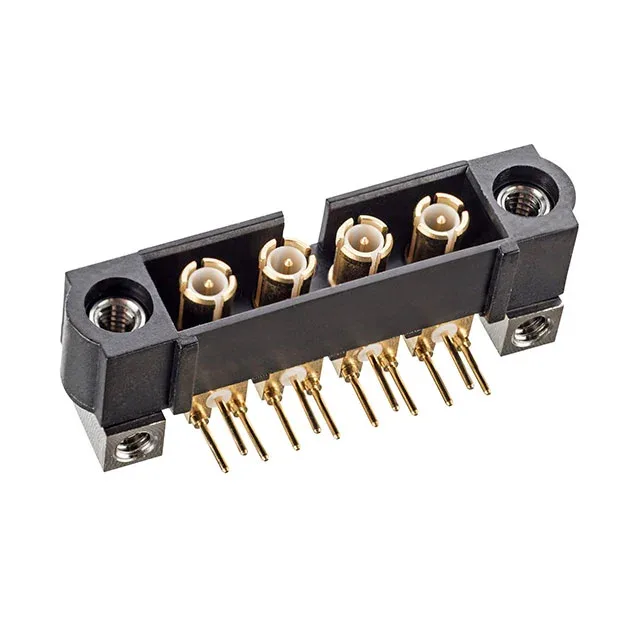

Harwin Inc. M80-MH313M5-04
MPNM80-MH313M5-04
Active
CONN HEADER R/A 4POS 4MM
$67.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate Coax
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate Coax |
| Type | Male Pin, Coaxial |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Threaded |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.220\" (5.60mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Mating Flange, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 4 (Coax) |
| Contact finish - mating | Gold |
