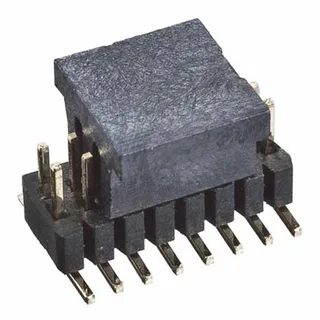

M40-3010246R
Harwin Inc.
2Pick and Place, Solder RetentionBoard to Board or Cable
Ref. price$0.7800
Lead time on requestGet quote ›
Harwin Inc. M403 Series
9 variants · Harwin Inc.
About the Harwin Inc. M403 Series
The Harwin Inc. M403 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Header and contact finish thickness - post of -. Variants differ by contact finish - mating, contact finish - post and contact finish thickness - mating, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Harwin Inc. M403 Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Gold · Tin
- Contact finish - post
- - · Tin
- Contact finish thickness - mating
- - · Flash
- Contact length - mating
- - · 0.071\" (1.80mm)
- Contact material
- Brass · Copper Alloy
- Contact shape
- Rectangular · Square
- Fastening type
- Detent Lock · Push-Pull
- Features
- Board Guide, Pick and Place · Board Guide, Pick and Place, Solder Retention · Pick and Place, Solder Retention
Shared specifications
- Applications
- -
- Connector type
- Header
- Contact finish thickness - post
- -
- Contact length - post
- -
- Current rating
- 1A
- Gender
- Male Pin
- Ingress protection
- -
- Mated stacking heights
- -
- Material flammability rating
- UL94 V-0
- Mounting type
- Surface Mount
- Overall contact length
- -
- Package
- Tape & Reel (TR) Cut Tape (CT)
Variant comparison
| Parameter | M40-3010246R | M40-3010446R | M40-3010646R | M40-3021046R | M40-3200345R | M40-3200445R |
|---|---|---|---|---|---|---|
| Contact finish - mating | Tin | Tin | Tin | Tin | Gold | Gold |
| Contact finish - post | Tin | Tin | Tin | Tin | - | - |
| Contact finish thickness - mating | - | - | - | - | Flash | Flash |
| Contact length - mating | - | - | - | - | 0.071\" (1.80mm) | 0.071\" (1.80mm) |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Brass | Brass |
| Contact shape | Rectangular | Rectangular | Rectangular | Rectangular | Square | Square |
| Fastening type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Push-Pull | Push-Pull |
| Features | Pick and Place, Solder Retention | Pick and Place, Solder Retention | Pick and Place, Solder Retention | Board Guide, Pick and Place, Solder Retention | Board Guide, Pick and Place | Board Guide, Pick and Place |
Request a quote on any Harwin Inc. M403 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Harwin Inc. M403 Series variants differ?
- Harwin Inc. M403 Series part numbers differ by contact finish - mating, contact finish - post, contact finish thickness - mating and contact length - mating. Use the selection guide above to pick by contact finish - mating.
- How many Harwin Inc. M403 Series part numbers are listed?
- 9 Harwin Inc. M403 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Harwin Inc. M403 Series?
- Request a quote (RFQ) for any Harwin Inc. M403 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
