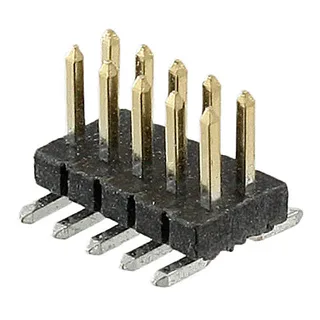

M50-3600342
Harwin Inc.
6Bulk-40°C ~ 105°C
Ref. price$1.4400
Lead time on requestGet quote ›
Harwin Inc. M5036 Series
31 variants · Harwin Inc.
About the Harwin Inc. M5036 Series
The Harwin Inc. M5036 Series series groups 31 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Header and contact finish - mating of Gold. Variants differ by contact finish thickness - mating, contact finish thickness - post and contact material, so you can match the exact contact finish thickness - mating your application requires using the selection guide below. All listed Harwin Inc. M5036 Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness - mating
- 1.00µin (0.025µm) · 3.00µin (0.076µm)
- Contact finish thickness - post
- 80.0µin (2.03µm) · 98.4µin (2.50µm)
- Contact material
- Brass · Copper Alloy
- Features
- - · Board Guide · Board Guide, Pick and Place
- Mated stacking heights
- - · 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
- Operating temperature
- -55°C ~ 105°C · -40°C ~ 105°C
- Package
- Box · Bulk · Tape & Reel (TR) Cut Tape (CT)
- Positions
- 6 · 10 · 12 · 14 · 16 · 20 · 24 · 40 · 50
Shared specifications
- Applications
- -
- Connector type
- Header
- Contact finish - mating
- Gold
- Contact finish - post
- Tin
- Contact length - mating
- 0.118\" (3.00mm)
- Contact length - post
- -
- Contact shape
- Square
- Current rating
- 1A
- Fastening type
- Push-Pull
- Gender
- Male Pin
- Ingress protection
- -
- Insulation color
- Black
Variant comparison
| Parameter | M50-3600342 | M50-3600642 | M50-3600742 | M50-3601242 | M50-3602042 | M50-3602542 |
|---|---|---|---|---|---|---|
| Contact finish thickness - mating | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) |
| Contact finish thickness - post | 98.4µin (2.50µm) | 98.4µin (2.50µm) | 98.4µin (2.50µm) | 98.4µin (2.50µm) | 98.4µin (2.50µm) | 98.4µin (2.50µm) |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Features | - | - | - | - | - | - |
| Mated stacking heights | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package | Bulk | Bulk | Bulk | Box | Bulk | Bulk |
| Positions | 6 | 12 | 14 | 24 | 40 | 50 |
Request a quote on any Harwin Inc. M5036 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Harwin Inc. M5036 Series variants differ?
- Harwin Inc. M5036 Series part numbers differ by contact finish thickness - mating, contact finish thickness - post, contact material and features. Use the selection guide above to pick by contact finish thickness - mating.
- How many Harwin Inc. M5036 Series part numbers are listed?
- 31 Harwin Inc. M5036 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Harwin Inc. M5036 Series?
- Request a quote (RFQ) for any Harwin Inc. M5036 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
