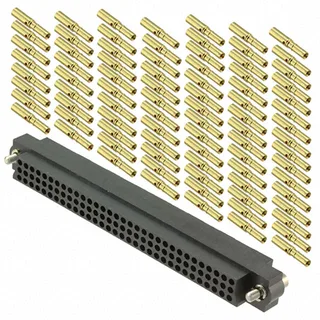

M83-LFC1F2N96-0000-000
Harwin Inc.
Jackscrews96Female Socket
Ref. price$58.69
Lead time on requestGet quote ›
Harwin Inc. M83L Series
8 variants · Harwin Inc.
About the Harwin Inc. M83L Series
The Harwin Inc. M83L Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common pitch of 0.079\" (2.00mm) and rows of 3. Variants differ by connector type, features and gender, so you can match the exact connector type your application requires using the selection guide below. All listed Harwin Inc. M83L Series part numbers are active and orderable.
Select a variant by
- Connector type
- Header · Receptacle
- Features
- Jackscrews · Jackscrews, Mating Flange, Mounting Flange · Mating Flange, Mounting Flange · Mating Flange, Mounting Flange, Mounting Hardware
- Gender
- Female Socket · Male Pin
- Mounting type
- Free Hanging (In-Line) · Through Hole · Through Hole, Right Angle
- Package
- Tray · Tube
- Positions
- 36 · 60 · 96
- Contact finish thickness - mating
- 12.0µin (0.30µm) · 29.5µin (0.75µm)
- Contact length - post
- 0.118\" (3.00mm) · 0.126\" (3.20mm) · 0.138\" (3.50mm) · 0.157\" (4.00mm)
Shared specifications
- Pitch
- 0.079\" (2.00mm)
- Rows
- 3
Variant comparison
| Parameter | M83-LFC1F2N96-0000-000 | M83-LFT1F2N36-0000-000 | M83-LML3M1N96-0000-000 | M83-LML3M7N36-0000-000 | M83-LML3M7N60-0000-000 | M83-LML3M7N96-0000-000 |
|---|---|---|---|---|---|---|
| Connector type | Receptacle | Receptacle | Header | Header | Header | Header |
| Features | Jackscrews | Jackscrews, Mating Flange, Mounting Flange | Mating Flange, Mounting Flange | Mating Flange, Mounting Flange, Mounting Hardware | Mating Flange, Mounting Flange, Mounting Hardware | Mating Flange, Mounting Flange, Mounting Hardware |
| Gender | Female Socket | Female Socket | Male Pin | Male Pin | Male Pin | Male Pin |
| Mounting type | Free Hanging (In-Line) | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Package | Tray | Tray | Tray | Tray | Tube | Tray |
| Positions | 96 | 36 | 96 | 36 | 60 | 96 |
| Contact finish thickness - mating | — | 12.0µin (0.30µm) | 29.5µin (0.75µm) | 29.5µin (0.75µm) | 29.5µin (0.75µm) | 29.5µin (0.75µm) |
| Contact length - post | — | 0.118\" (3.00mm) | 0.138\" (3.50mm) | 0.157\" (4.00mm) | 0.157\" (4.00mm) | 0.157\" (4.00mm) |
Request a quote on any Harwin Inc. M83L Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Harwin Inc. M83L Series variants differ?
- Harwin Inc. M83L Series part numbers differ by connector type, features, gender and mounting type. Use the selection guide above to pick by connector type.
- How many Harwin Inc. M83L Series part numbers are listed?
- 8 Harwin Inc. M83L Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Harwin Inc. M83L Series?
- Request a quote (RFQ) for any Harwin Inc. M83L Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
