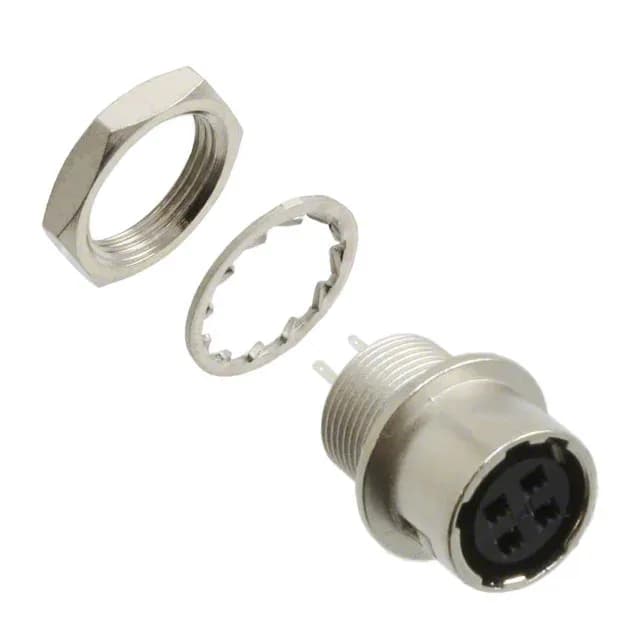

CONN RCPT FMALE 4POS SILV SOLDER
$7.4700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | HR10A |
| Mounting type | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 150VAC, 200VDC |
| Current rating | 2A |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -25°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Polybutylene Terephthalate (PBT) |
| Contact material | Phosphor Bronze |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | 7 |
| Contact finish - mating | Silver |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Sourcing this connector
Hirose Electric Co Ltd HR10A-7R-4SB(73) is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Hirose Electric Co Ltd and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
