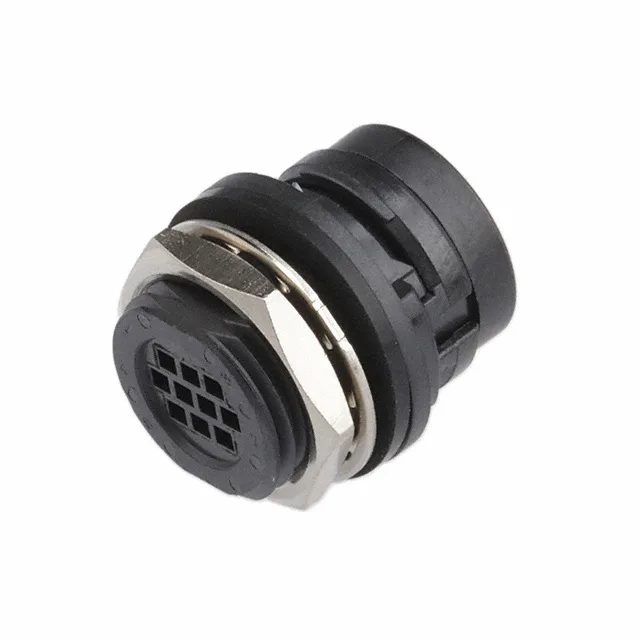

CONN RCPT HSG MALE 10POS PNL MT
$4.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | HR30 |
| Gender | Crimp |
| Mounting type | Panel Mount |
| Connector type | Receptacle Housing |
| Fastening type | Push-Pull |
| Ingress protection | IP67/IP68 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Black |
| Shell material | Polyphenylene Sulfide (PPS) |
| Insert material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Package | Bulk |
| Includes | 4 pcs - 1 Housing, 1 Gasket, 1 Lockwasher, 1 Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Contact shape | Square |
| Positions | 10 |
| Shell size - insert | 7 |
Sourcing this connector
Hirose Electric Co Ltd HR30-7R-10PC(31) is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Hirose Electric Co Ltd and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
