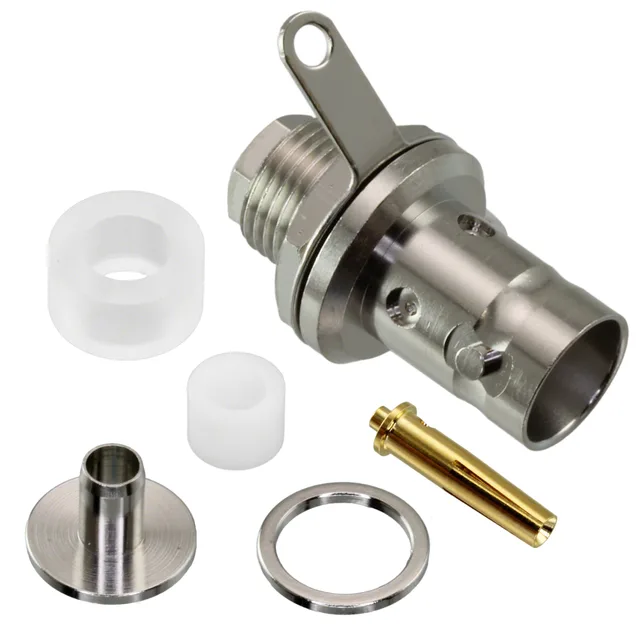

BNC-BPR-3(40)
Hirose Electric Co Ltd
-55°C~85°CBulkPanel Mount
Ref. price$42.4100
Lead time on requestGet quote
Hirose Electric Co Ltd BNCB Series
2 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd BNCB Series
The Hirose Electric Co Ltd BNCB Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, body material of Brass and center contact plating of Gold. Variants differ by cable group, center contact material and connector type, so you can match the exact cable group your application requires using the selection guide below. All listed Hirose Electric Co Ltd BNCB Series part numbers are active and orderable.
Select a variant by
- Cable group
- - · 1.5D-2V
- Center contact material
- Beryllium Copper · Brass
- Connector type
- Jack, Female Socket · Plug, Male Pin
- Contact termination
- Solder · Solder Cup
- Impedance
- 50 Ohms · 50Ohm
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Solder Tag · 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Operating temperature
- -55°C~85°C · -30°C ~ 85°C
- Shield termination
- Clamp · Solder Tag
Shared specifications
- Body finish
- Nickel
- Body material
- Brass
- Center contact plating
- Gold
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Bayonet Lock
- Features
- -
- Frequency - max
- 4 GHz
- Housing color
- Silver
- Insertion loss
- -
- IP rating
- -
- Mating cycles
- 1000
- Mounting
- Panel Mount
Variant comparison
| Parameter | BNC-BPR-3(40) | BNC-BPJ-1.5-1(40) |
|---|---|---|
| Cable group | - | 1.5D-2V |
| Center contact material | Brass | Beryllium Copper |
| Connector type | Plug, Male Pin | Jack, Female Socket |
| Contact termination | Solder Cup | Solder |
| Impedance | 50Ohm | 50 Ohms |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Solder Tag | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Operating temperature | -55°C~85°C | -30°C ~ 85°C |
| Shield termination | Solder Tag | Clamp |
Request a quote on any Hirose Electric Co Ltd BNCB Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
