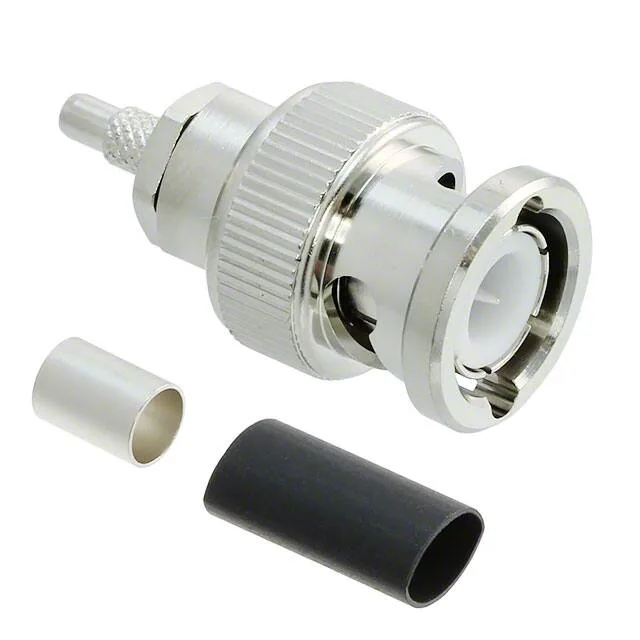

BNC-P-1.5(40)
Hirose Electric Co Ltd
-30°C ~ 60°CBulk50 Ohms
Ref. price$27.0900
Lead time on requestGet quote ›
Hirose Electric Co Ltd BNCP Series
15 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd BNCP Series
The Hirose Electric Co Ltd BNCP Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body material of Brass, dielectric material of Polytetrafluoroethylene (PTFE) and features of -. Variants differ by body finish, center contact material and center contact plating, so you can match the exact body finish your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Hirose Electric Co Ltd BNCP Series variants and discontinued ones from a single page.
Select a variant by
- Body finish
- Nickel · Silver
- Center contact material
- Beryllium Copper · Brass
- Center contact plating
- Gold · Silver
- Fastening type
- Bayonet Lock · Bayonet Lock, Bayonet Lock
- Frequency - max
- 1 GHz · 2 GHz · 3 GHz · 4 GHz · 500 MHz
- Impedance
- 50 Ohms · 50Ohm
- Mating cycles
- 500 · 1000 · 10000
- Mounting feature
- - · Flange
Shared specifications
- Body material
- Brass
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Features
- -
- Includes
- -
- Ingress protection
- -
- Insertion loss
- -
- Package
- Bulk
Variant comparison
| Parameter | BNC-P-1.5(40) | BNC-P-1.5CR(40) | BNC-PA-JJ(40) | BNC-P-1.5WCR(40) | BNC-PJ-1.5DV-1(40) | BNC-P-1.5W(40) |
|---|---|---|---|---|---|---|
| Body finish | Nickel | Nickel | Silver | Nickel | Nickel | Nickel |
| Center contact material | Brass | Brass | Beryllium Copper | Brass | Beryllium Copper | Brass |
| Center contact plating | Silver | Silver | Silver | Silver | Silver | Silver |
| Fastening type | Bayonet Lock | Bayonet Lock | Bayonet Lock, Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - max | 2 GHz | 4 GHz | 4 GHz | 4 GHz | 1 GHz | 2 GHz |
| Impedance | 50 Ohms | 50Ohm | 50Ohm | 50 Ohms | 50 Ohms | 50 Ohms |
| Mating cycles | 1000 | 1000 | 10000 | 1000 | 500 | 1000 |
| Mounting feature | - | - | Flange | - | Flange | - |
Request a quote on any Hirose Electric Co Ltd BNCP Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Hirose Electric Co Ltd BNCP Series variants differ?
- Hirose Electric Co Ltd BNCP Series part numbers differ by body finish, center contact material, center contact plating and fastening type. Use the selection guide above to pick by body finish.
- How many Hirose Electric Co Ltd BNCP Series part numbers are listed?
- 15 Hirose Electric Co Ltd BNCP Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Hirose Electric Co Ltd BNCP Series?
- Request a quote (RFQ) for any Hirose Electric Co Ltd BNCP Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
