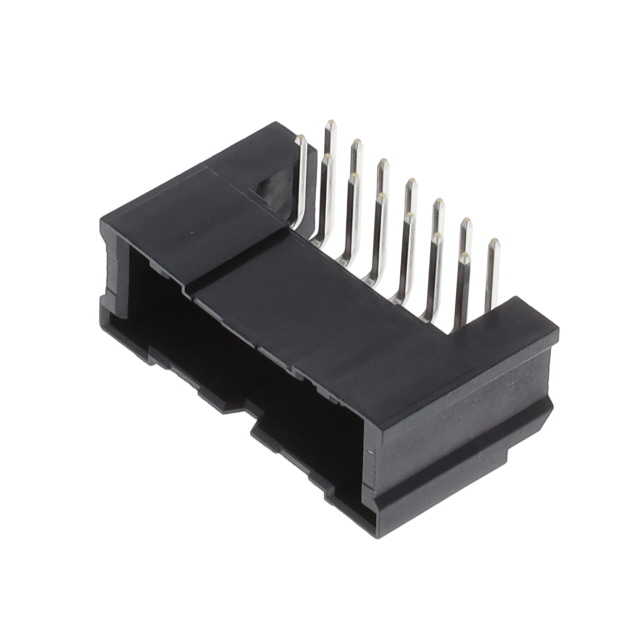

DF51A-10DP-2DS(50)
Hirose Electric Co Ltd
10-55°C~105°CTray
Ref. price$1.6100
Lead time on requestGet quote ›
Hirose Electric Co Ltd DF51A Series
31 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd DF51A Series
The Hirose Electric Co Ltd DF51A Series series groups 31 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, Industrial, Medical, connector type of Header and contact length - mating of -. Variants differ by contact finish - mating, contact finish - post and contact finish thickness - mating, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Hirose Electric Co Ltd DF51A Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Gold · Tin
- Contact finish - post
- Gold · Tin
- Contact finish thickness - mating
- - · 3.94µin (0.100µm) · 39.4µin (1.00µm)
- Contact finish thickness - post
- - · 3.94µin (0.100µm) · 39.4µin (1.00µm)
- Insulation height
- 0.287\" (7.30mm) · 0.331\" (8.40mm)
- Mounting type
- Through Hole · Through Hole, Right Angle
- Operating temperature
- -55°C ~ 105°C · -55°C~105°C
- Package
- Bulk · Tray
Shared specifications
- Applications
- General Purpose, Industrial, Medical
- Connector type
- Header
- Contact length - mating
- -
- Contact length - post
- 0.118\" (3.00mm)
- Contact material
- Brass
- Contact shape
- Square
- Current rating
- Varies by Wire Gauge
- Fastening type
- Detent Lock
- Features
- -
- Gender
- Male Pin
- Ingress protection
- -
- Insulation color
- Black
Variant comparison
| Parameter | DF51A-10DP-2DS(50) | DF51A-10DP-2DSA(01) | DF51A-12DP-2DSA(01) | DF51A-14DP-2DS(20) | DF51A-14DP-2DSA(01) | DF51A-16DP-2DSA |
|---|---|---|---|---|---|---|
| Contact finish - mating | Gold | Gold | Gold | Tin | Gold | Tin |
| Contact finish - post | Gold | Gold | Gold | Tin | Gold | Tin |
| Contact finish thickness - mating | 3.94µin (0.100µm) | - | - | 39.4µin (1.00µm) | - | - |
| Contact finish thickness - post | 3.94µin (0.100µm) | - | - | 39.4µin (1.00µm) | - | - |
| Insulation height | 0.287\" (7.30mm) | 0.331\" (8.40mm) | 0.331\" (8.40mm) | 0.287\" (7.30mm) | 0.331\" (8.40mm) | 0.331\" (8.40mm) |
| Mounting type | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Operating temperature | -55°C~105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C~105°C | -55°C ~ 105°C | -55°C~105°C |
| Package | Tray | Bulk | Bulk | Tray | Bulk | Bulk |
Request a quote on any Hirose Electric Co Ltd DF51A Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Hirose Electric Co Ltd DF51A Series variants differ?
- Hirose Electric Co Ltd DF51A Series part numbers differ by contact finish - mating, contact finish - post, contact finish thickness - mating and contact finish thickness - post. Use the selection guide above to pick by contact finish - mating.
- How many Hirose Electric Co Ltd DF51A Series part numbers are listed?
- 31 Hirose Electric Co Ltd DF51A Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Hirose Electric Co Ltd DF51A Series?
- Request a quote (RFQ) for any Hirose Electric Co Ltd DF51A Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
