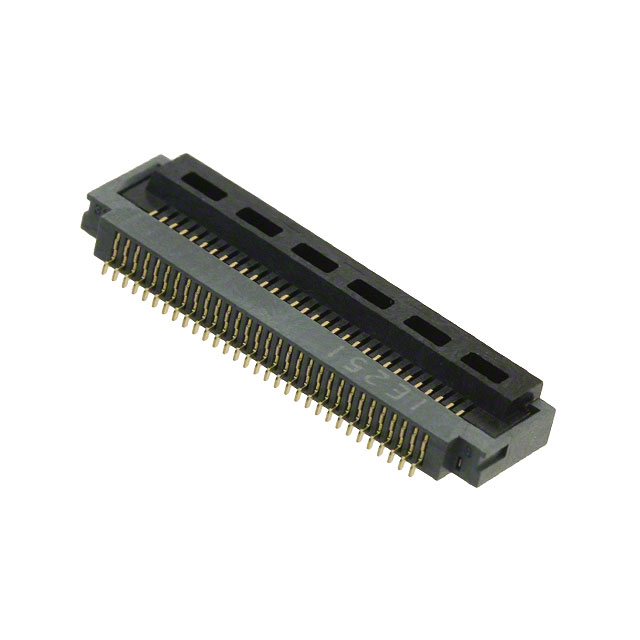

FH41-28S-0.5SH(99)
Hirose Electric Co Ltd
28-40°C ~ 105°CTape & Reel (TR)
Ref. price$3.4094
Lead time on requestGet quote ›
Hirose Electric Co Ltd FH41 Series
14 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd FH41 Series
The Hirose Electric Co Ltd FH41 Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actuator color of Black, actuator material of Liquid Crystal Polymer (LCP), Halogen Free and cable end type of Tabbed. Variants differ by contact finish, contact finish thickness and flat flex type, so you can match the exact contact finish your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Hirose Electric Co Ltd FH41 Series variants and discontinued ones from a single page.
Select a variant by
- Contact finish
- - · Gold
- Contact finish thickness
- - · 1.25µin (0.03µm)
- Flat flex type
- FFC · FPC
- Operating temperature
- -40°C ~ 105°C · -40°C~105°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT)
- Positions
- 15 · 20 · 28 · 30 · 31 · 40 · 50 · 68
Shared specifications
- Actuator color
- Black
- Actuator material
- Liquid Crystal Polymer (LCP), Halogen Free
- Cable end type
- Tabbed
- Connector (Contact type)
- Contacts, Bottom
- Contact material
- Phosphor Bronze
- Current rating
- 0.5A
- Features
- Solder Retention
- FFC, FCB thickness
- 0.30mm
- Height above board
- 0.098\" (2.50mm)
- Housing color
- Gray
- Housing material
- Liquid Crystal Polymer (LCP), Halogen Free
- Locking feature
- Flip Lock, Backlock
Variant comparison
| Parameter | FH41-28S-0.5SH(99) | FH41-30S-0.5SH(99) | FH41-31S-0.5SH(99) | FH41-40S-0.5SH(99) | FH41-50S-0.5SH(05) | FH41-68S-0.5SH(05) |
|---|---|---|---|---|---|---|
| Contact finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact finish thickness | - | - | - | - | 1.25µin (0.03µm) | 1.25µin (0.03µm) |
| Flat flex type | FFC | FFC | FFC | FFC | FFC | FFC |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Positions | 28 | 30 | 31 | 40 | 50 | 68 |
Request a quote on any Hirose Electric Co Ltd FH41 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Hirose Electric Co Ltd FH41 Series variants differ?
- Hirose Electric Co Ltd FH41 Series part numbers differ by contact finish, contact finish thickness, flat flex type and operating temperature. Use the selection guide above to pick by contact finish.
- How many Hirose Electric Co Ltd FH41 Series part numbers are listed?
- 14 Hirose Electric Co Ltd FH41 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Hirose Electric Co Ltd FH41 Series?
- Request a quote (RFQ) for any Hirose Electric Co Ltd FH41 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
