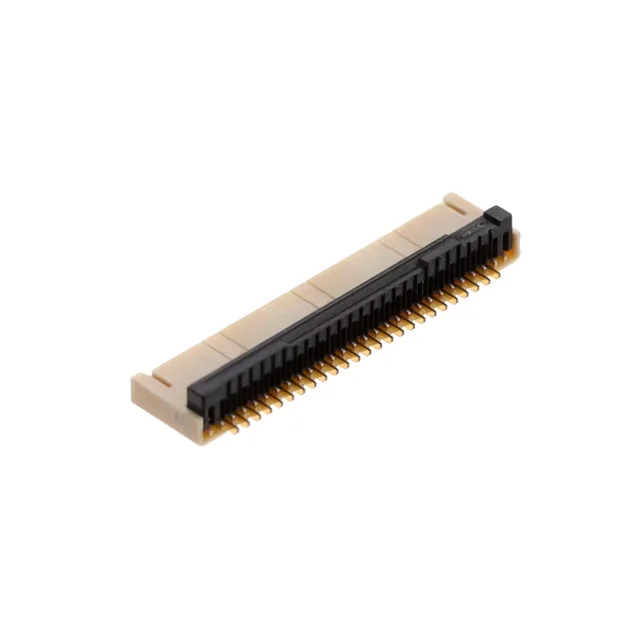

FH58-35S-0.2SHW(99)
Hirose Electric Co Ltd
350.008\" (0.20mm)FH58
Ref. price$3.5500
Lead time on requestGet quote ›
Hirose Electric Co Ltd FH58 Series
4 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd FH58 Series
The Hirose Electric Co Ltd FH58 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actuator color of Black, cable end type of Notched and connector (Contact type) of Contacts, Top and Bottom. Variants differ by actuator material, features and housing material, so you can match the exact actuator material your application requires using the selection guide below. All listed Hirose Electric Co Ltd FH58 Series part numbers are active and orderable.
Select a variant by
- Actuator material
- Polyamide (PA), Nylon · Polyamide (PA), Nylon, Halogen Free
- Features
- - · Zero Insertion Force (ZIF)
- Housing material
- Liquid Crystal Polymer (LCP) · Liquid Crystal Polymer (LCP), Halogen Free
- Mounting type
- Surface Mount · Surface Mount, Right Angle
- Pitch
- 0.008\" (0.20mm) · 0.016\" (0.40mm)
- Positions
- 21 · 35 · 41 · 51
- Voltage rating
- - · 30V
Shared specifications
- Actuator color
- Black
- Cable end type
- Notched
- Connector (Contact type)
- Contacts, Top and Bottom
- Contact finish
- Gold
- Contact finish thickness
- 1.25µin (0.03µm)
- Contact material
- Phosphor Bronze
- Current rating
- 0.2A
- FFC, FCB thickness
- 0.20mm
- Flat flex type
- FPC
- Height above board
- 0.035\" (0.88mm)
- Housing color
- Beige
- Locking feature
- Flip Lock, Backlock
Variant comparison
| Parameter | FH58-35S-0.2SHW(99) | FH58-41S-0.2SHW(99) | FH58-21S-0.2SHW | FH58-51S-0.2SHW |
|---|---|---|---|---|
| Actuator material | Polyamide (PA), Nylon, Halogen Free | Polyamide (PA), Nylon, Halogen Free | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Halogen Free |
| Features | - | - | - | Zero Insertion Force (ZIF) |
| Housing material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP), Halogen Free |
| Mounting type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount |
| Pitch | 0.008\" (0.20mm) | 0.008\" (0.20mm) | 0.008\" (0.20mm) | 0.016\" (0.40mm) |
| Positions | 35 | 41 | 21 | 51 |
| Voltage rating | - | - | 30V | 30V |
Request a quote on any Hirose Electric Co Ltd FH58 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Hirose Electric Co Ltd FH58 Series variants differ?
- Hirose Electric Co Ltd FH58 Series part numbers differ by actuator material, features, housing material and mounting type. Use the selection guide above to pick by actuator material.
- How many Hirose Electric Co Ltd FH58 Series part numbers are listed?
- 4 Hirose Electric Co Ltd FH58 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Hirose Electric Co Ltd FH58 Series?
- Request a quote (RFQ) for any Hirose Electric Co Ltd FH58 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
